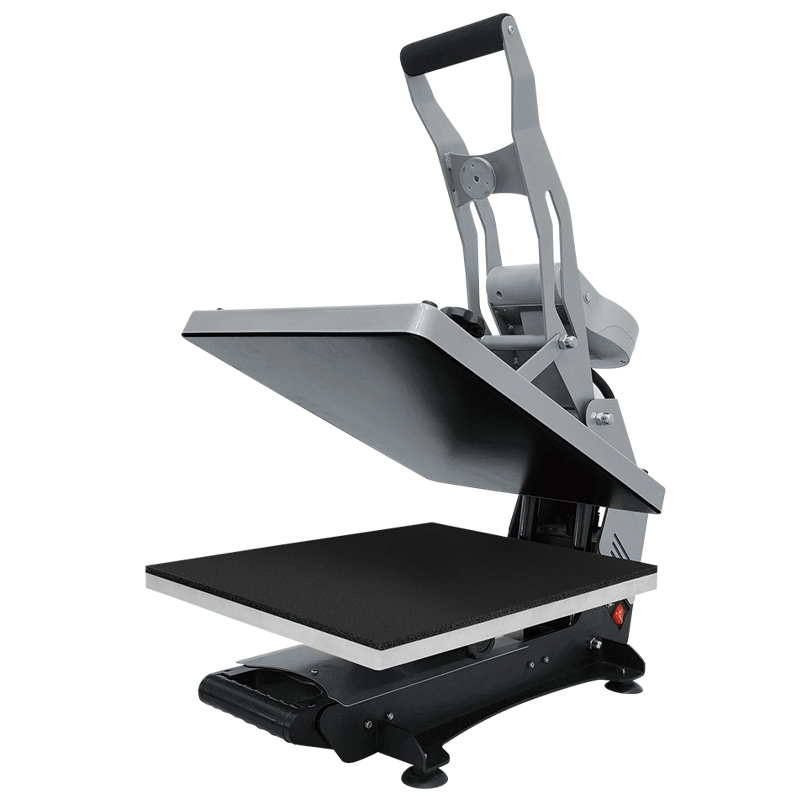

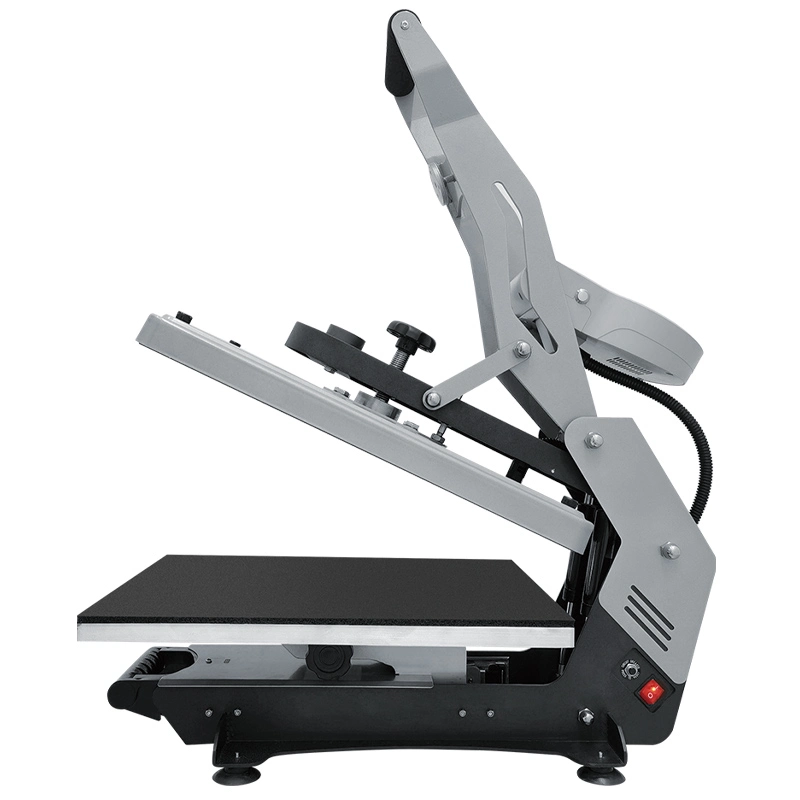

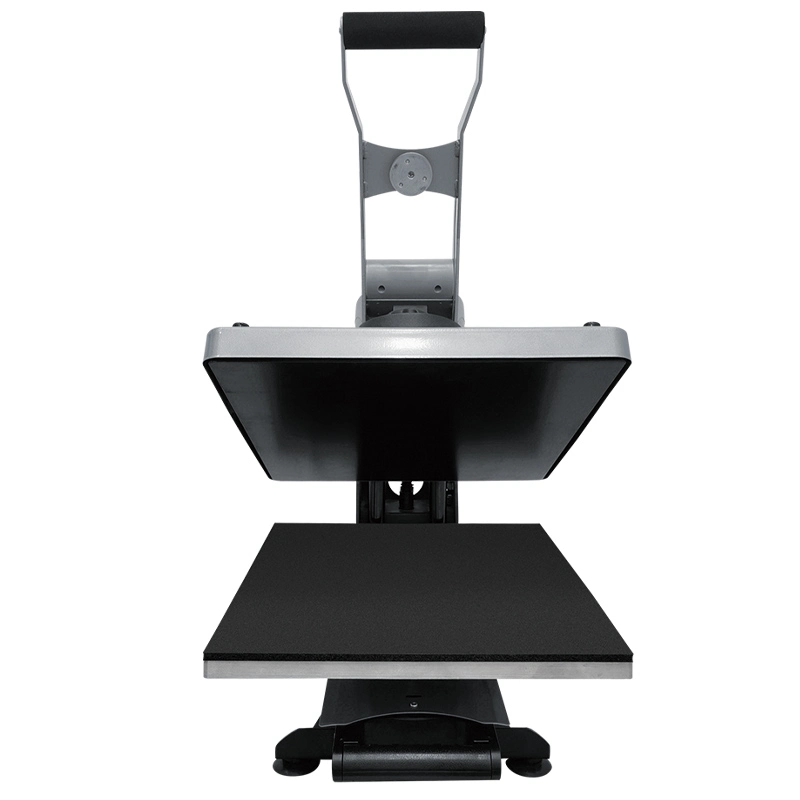

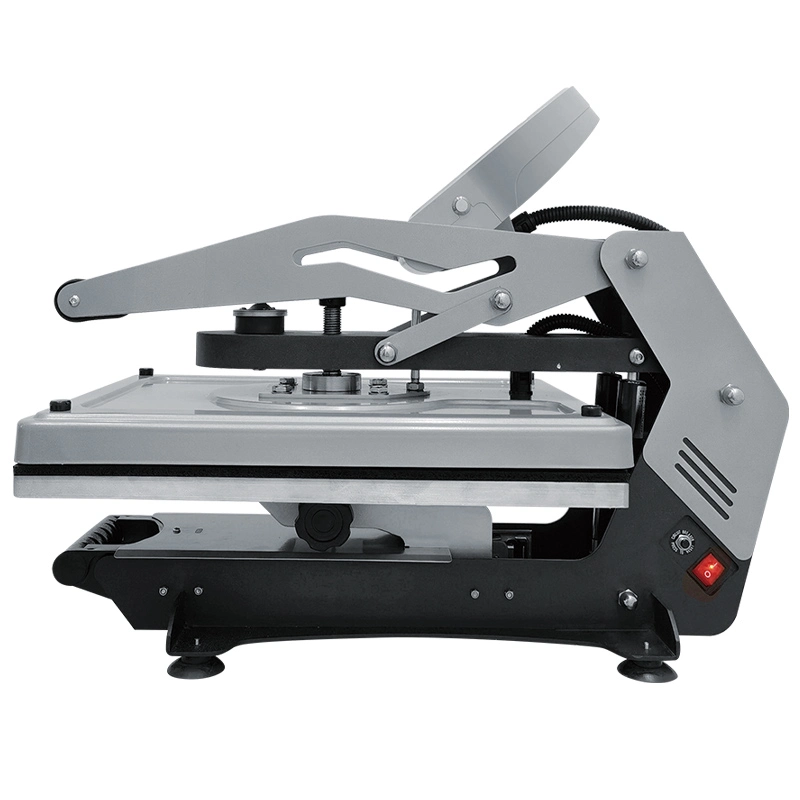

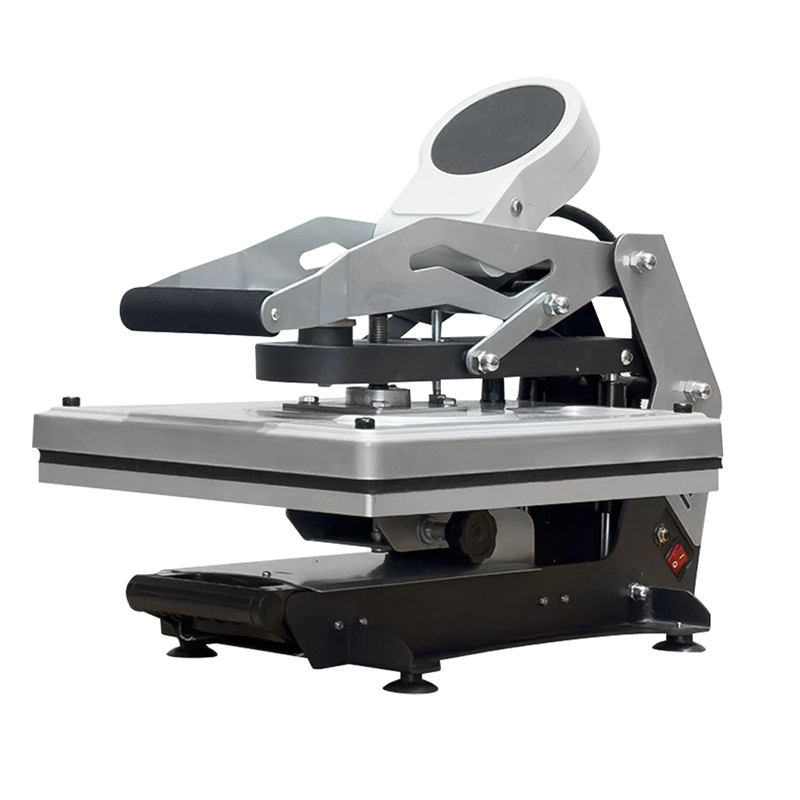

HP3804D-3 is a semi-automatic slide-out auto-open heat press with a 16" × 20" (40 × 50 cm) platen for garment decoration and production use. Its pull-out drawer, threadable platen, LCD Controller V4, multi-timer settings, and compatibility with more than 10 lower platen options support T-shirts and other flat heat-transfer applications.

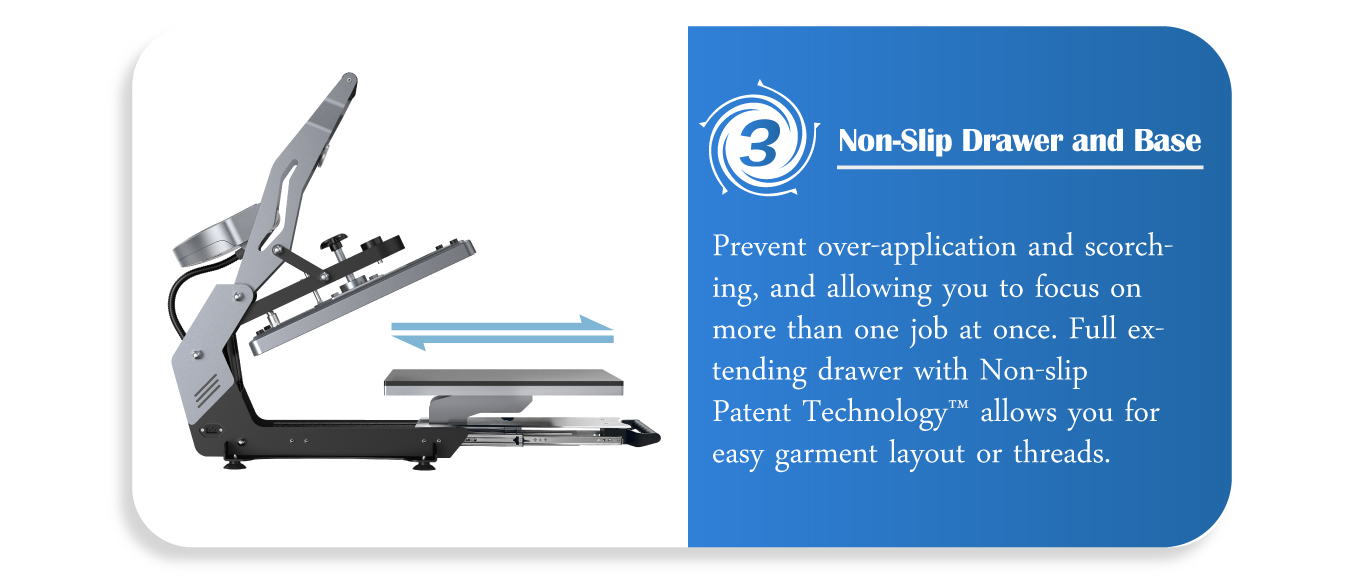

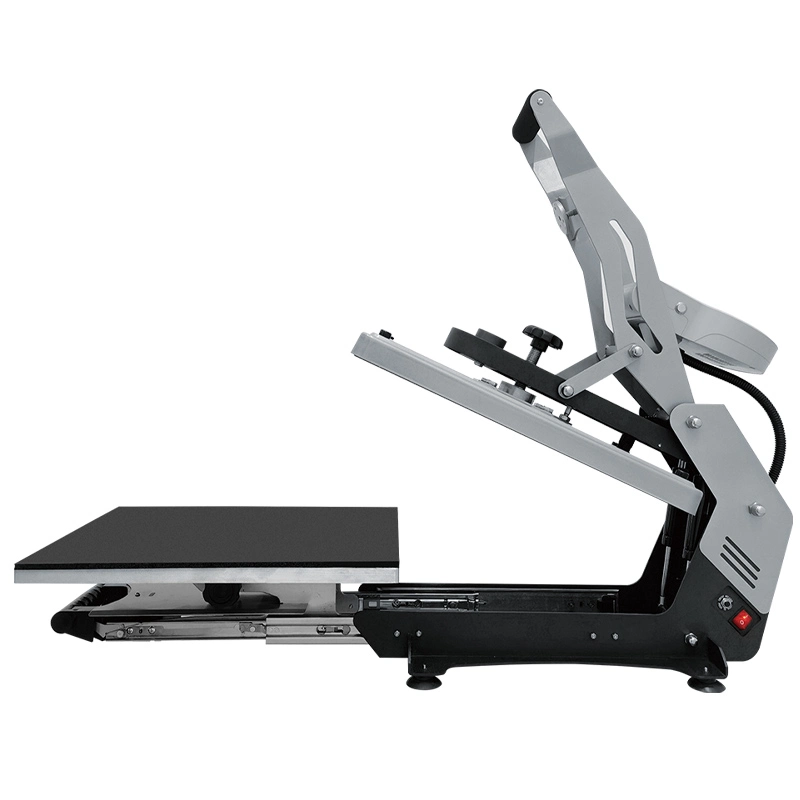

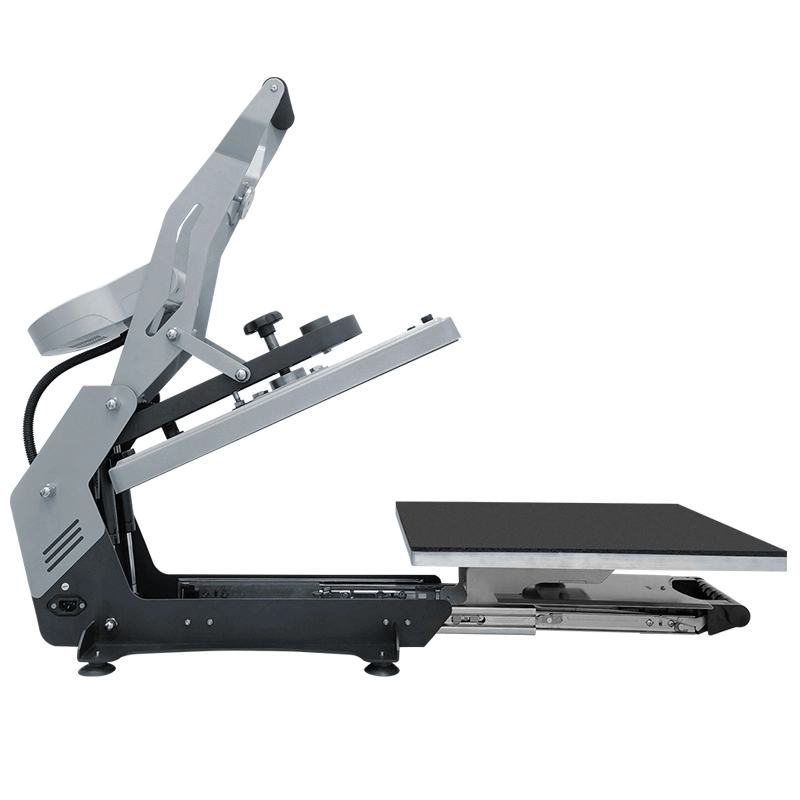

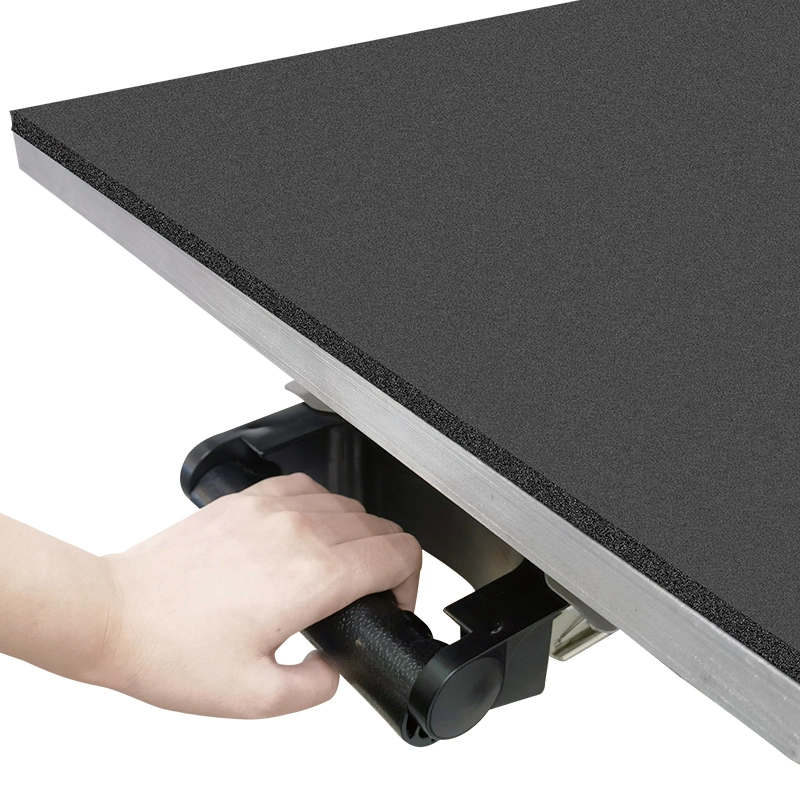

The platen slides out to provide easier garment placement and a clearer loading area.

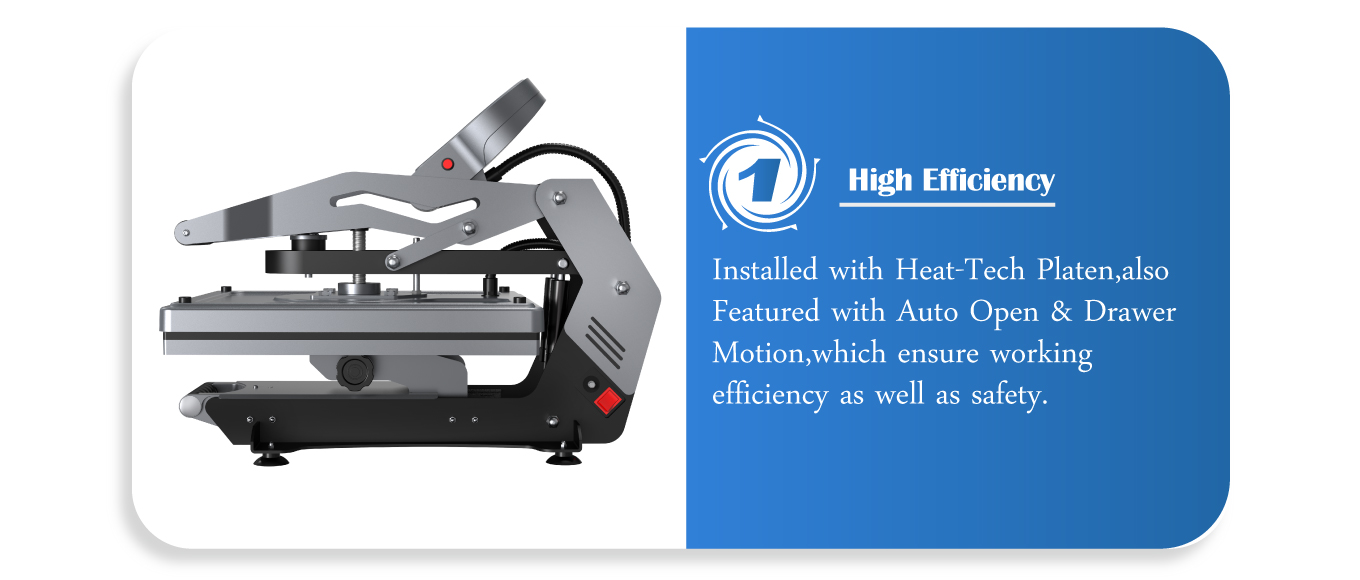

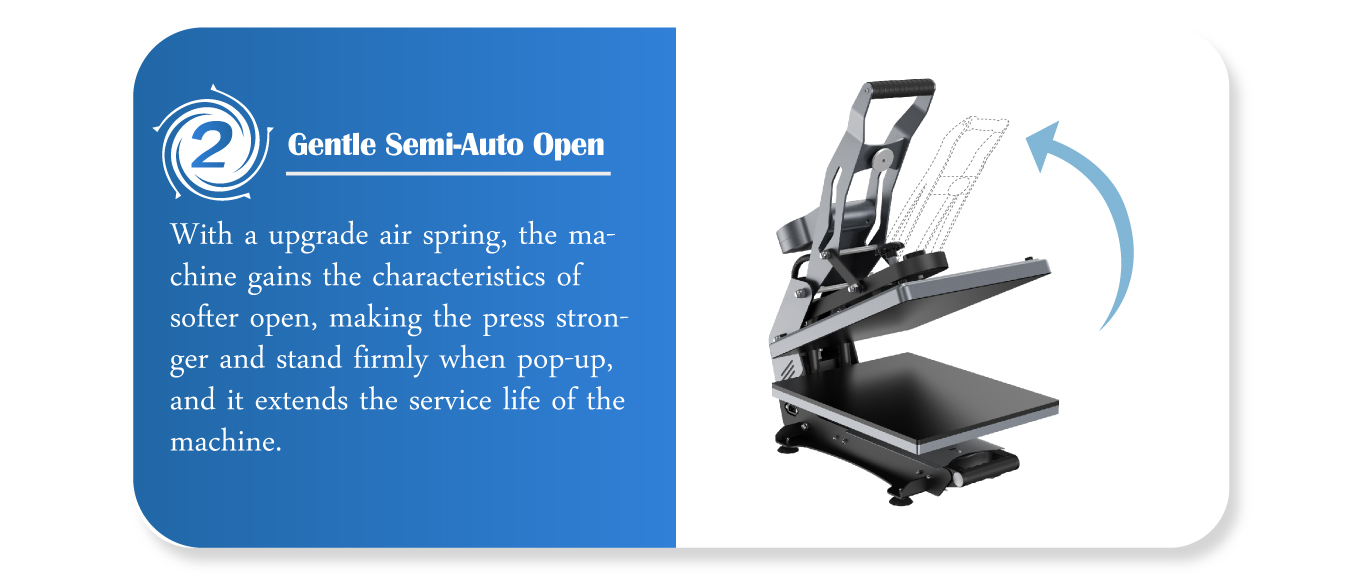

The press opens after the preset time to help prevent over-application during repeated production.
One-, two-, or three-step timing accommodates different heat-transfer processes in one programmed workflow.

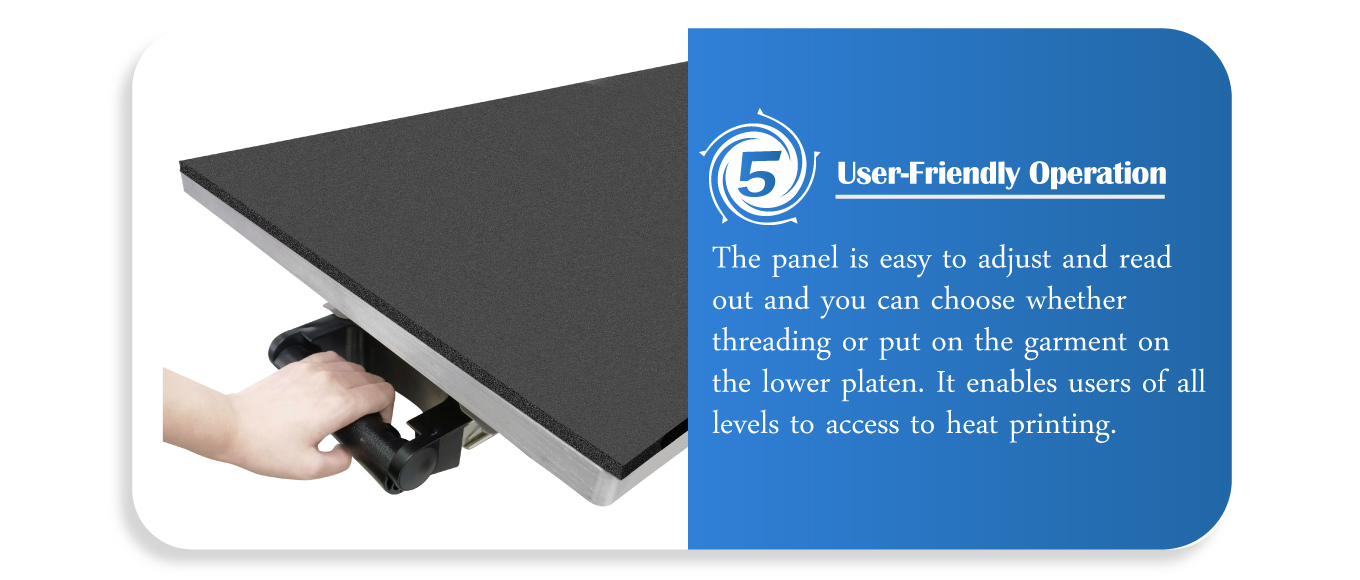

Garments can be loaded or rotated around the lower platen to reach different print areas.

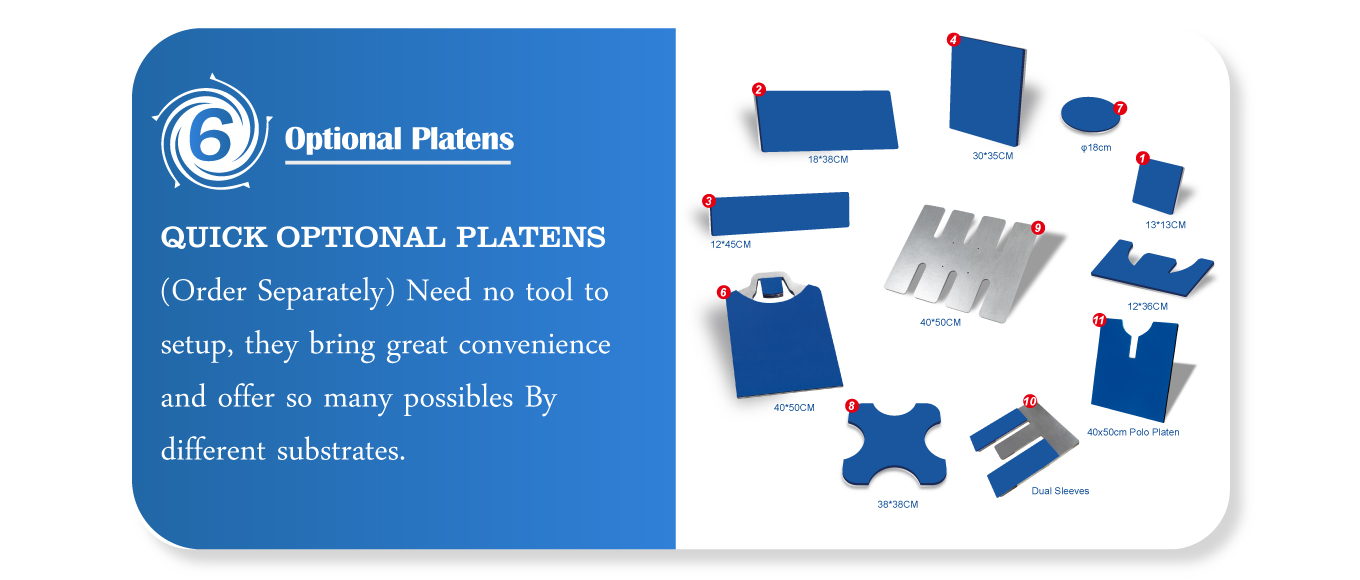

More than 10 compatible lower platen options are available for specialized applications.

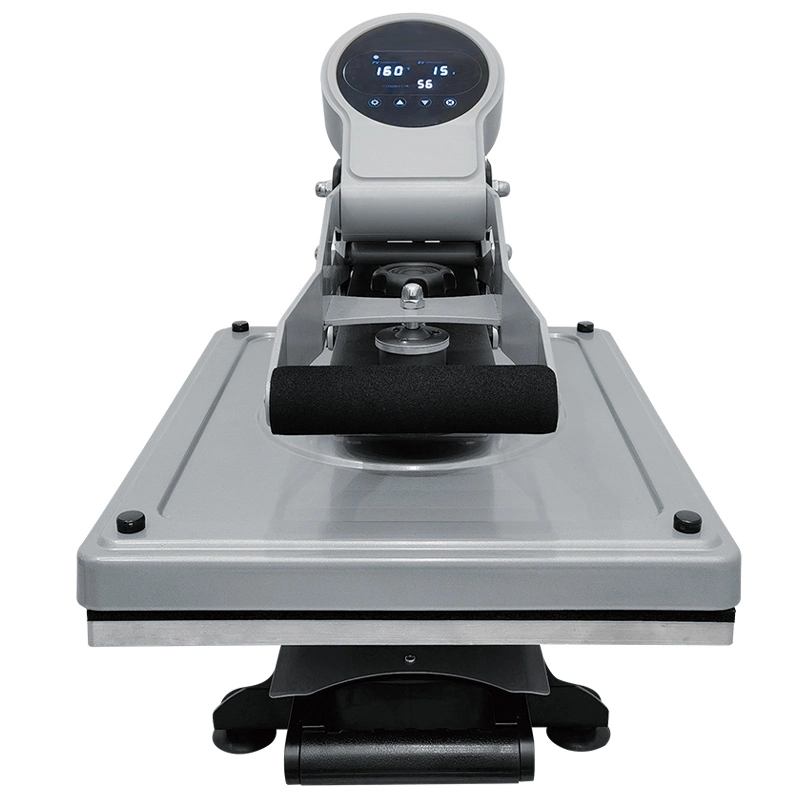

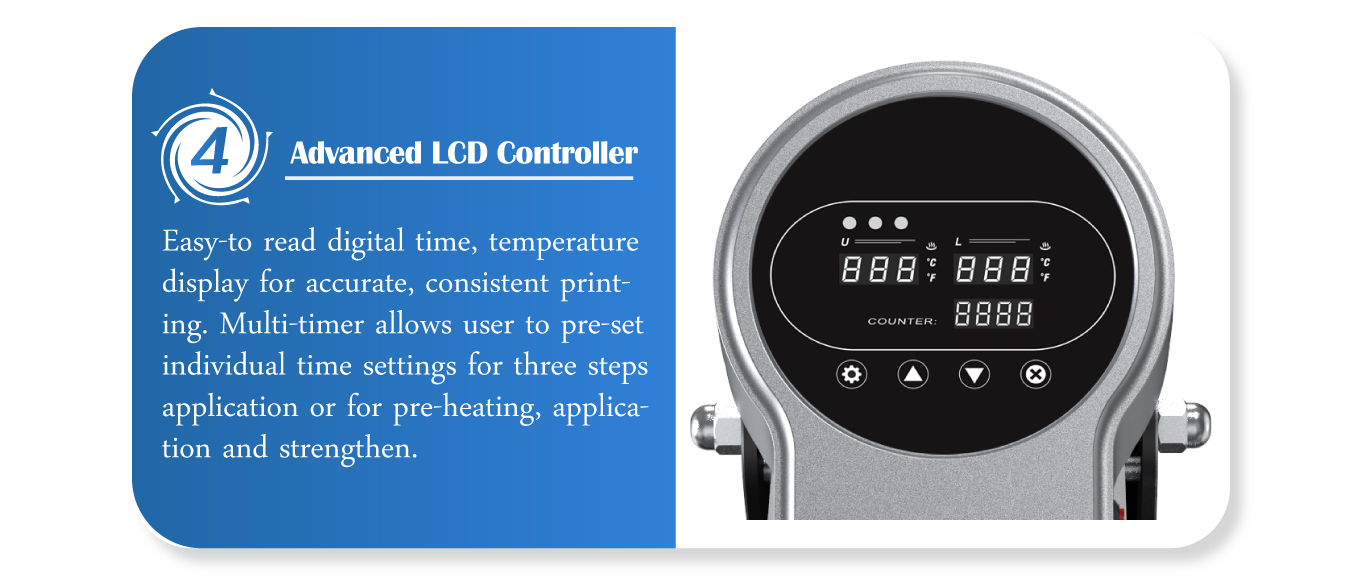

The controller manages time and temperature for accurate, consistent heat-transfer settings.
| Specification | Details |
|---|---|
| Model | HP3804D-3 |
| Press Type | Semi-Automatic Slide-Out Auto-Open Heat Press |
| Platen Size | 16" × 20" (40 × 50 cm) |
| Lower Platens | More than 10 compatible lower platen options |
| Voltage / Frequency | 110 V / 60 Hz; 220 V / 50 Hz |
| Rated Power | 1,800-2,200 W |
| Controller | LCD Controller V4 |
| Maximum Temperature | 210°C (410°F) |
| Timer Range | 0-999 Seconds |
| Auto Power-Off Timer | Up to 120 Minutes |
| Pressure Control | Manual Wheel |
| Maximum Platen Pressure | 250 g/cm² (40 × 50 cm platen) |
| Maximum Material Thickness | ≤ 1 cm |
| Machine Dimensions (L × W × H) | 70 × 55 × 42 cm |
| Packing Dimensions (L × W × H) | 82 × 67 × 54 cm |
| Net / Gross Weight | 40 kg / 44 kg |
| Compliance | CE / UKCA (SGS Audited) |
