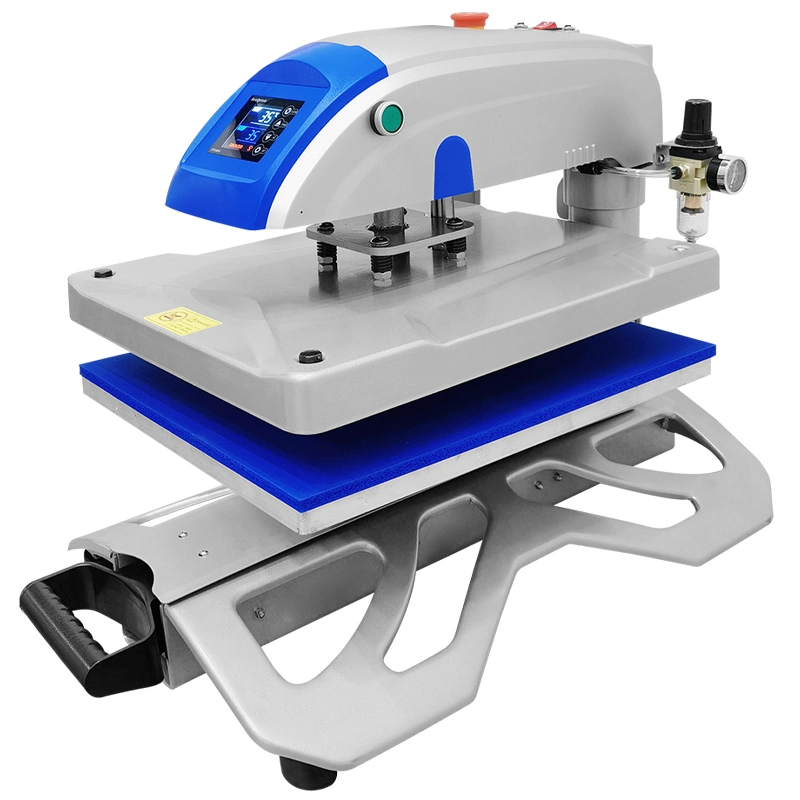

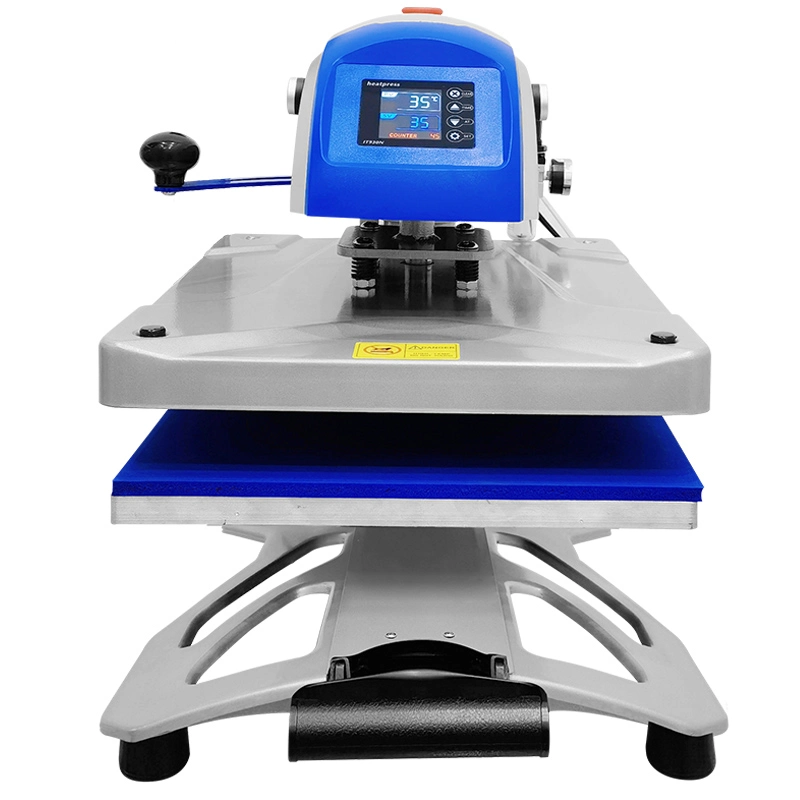

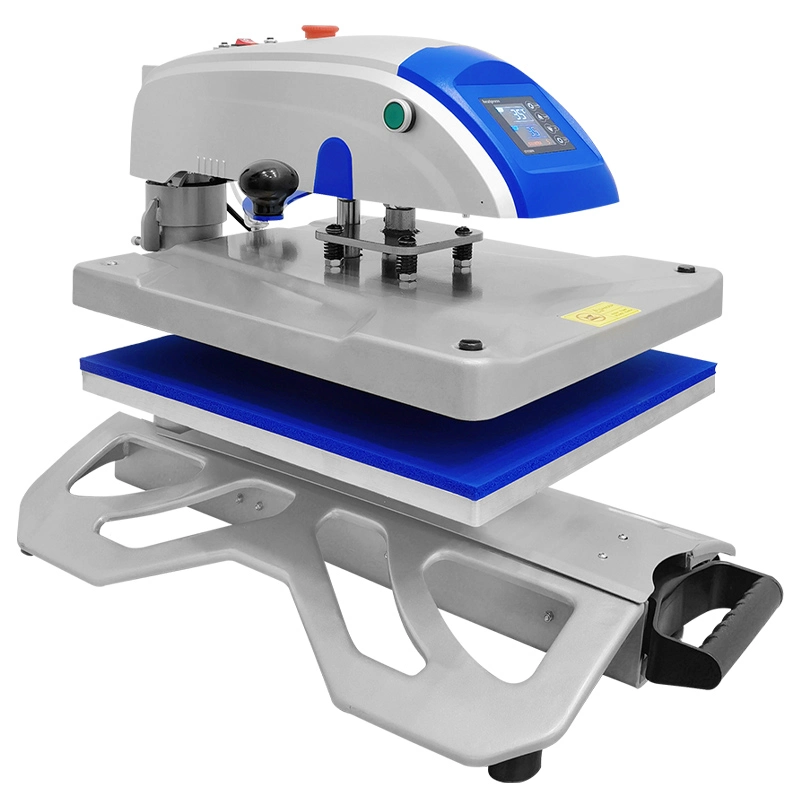

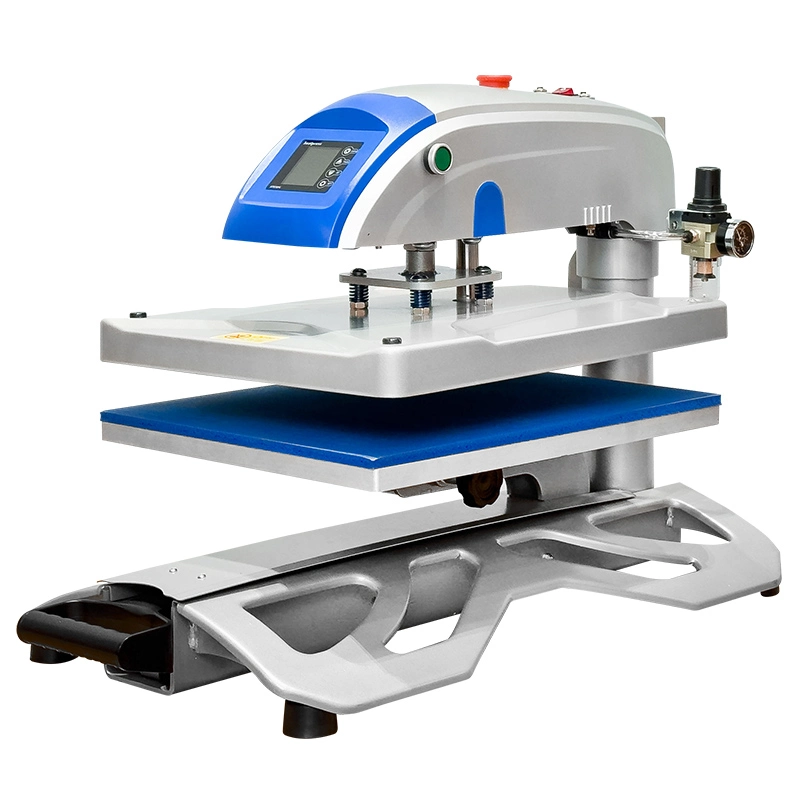

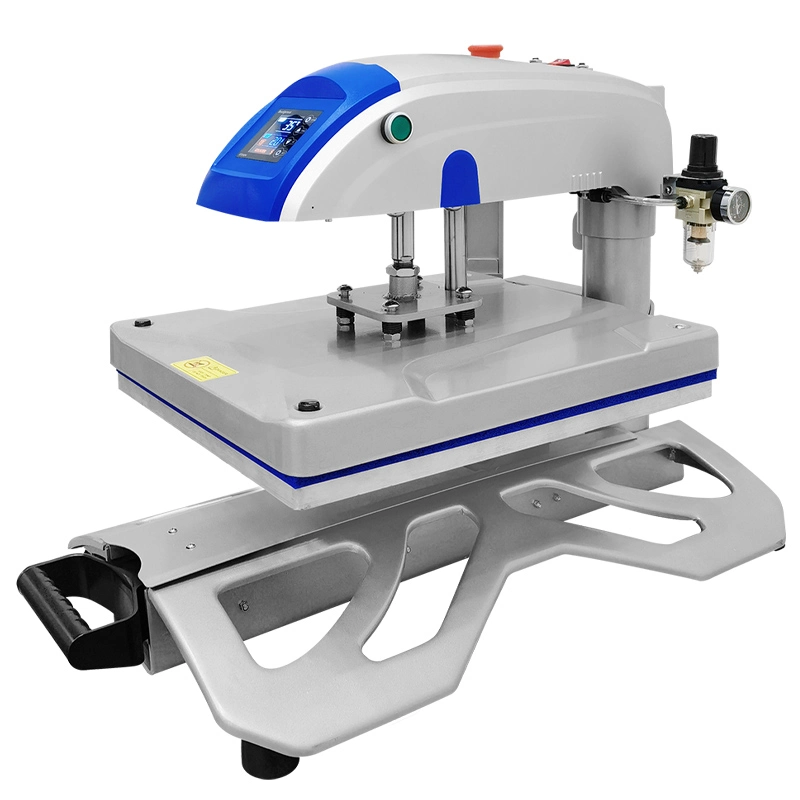

20x16 Pneumatic Sublimation Heat Transfer Press Printing Machine 40x50cm

We’re pleased to introduce this heat press 40 x 50 to you.


  • Model: B1-N

  • Price: $1199~$1299(Contact us to get discount or dristributor price)

  • Digital Precision: Accurate temperature, timer control for consistent results.

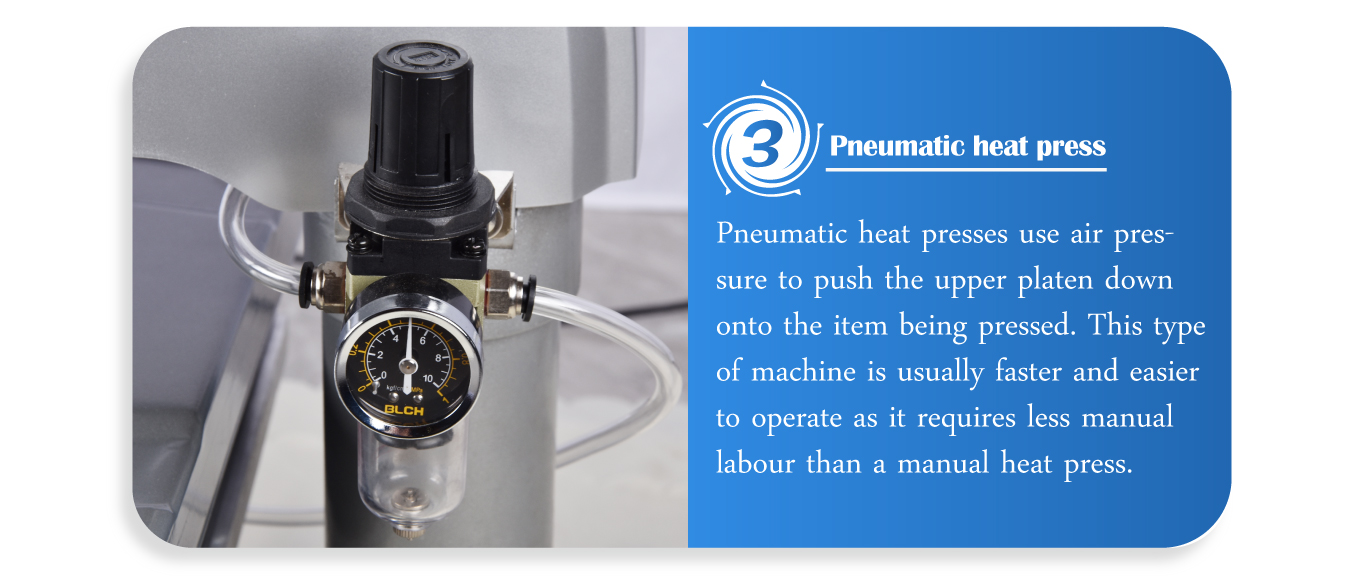

  • Pneumatic Design: Air cylinder generates even pressure across entire pressing area.

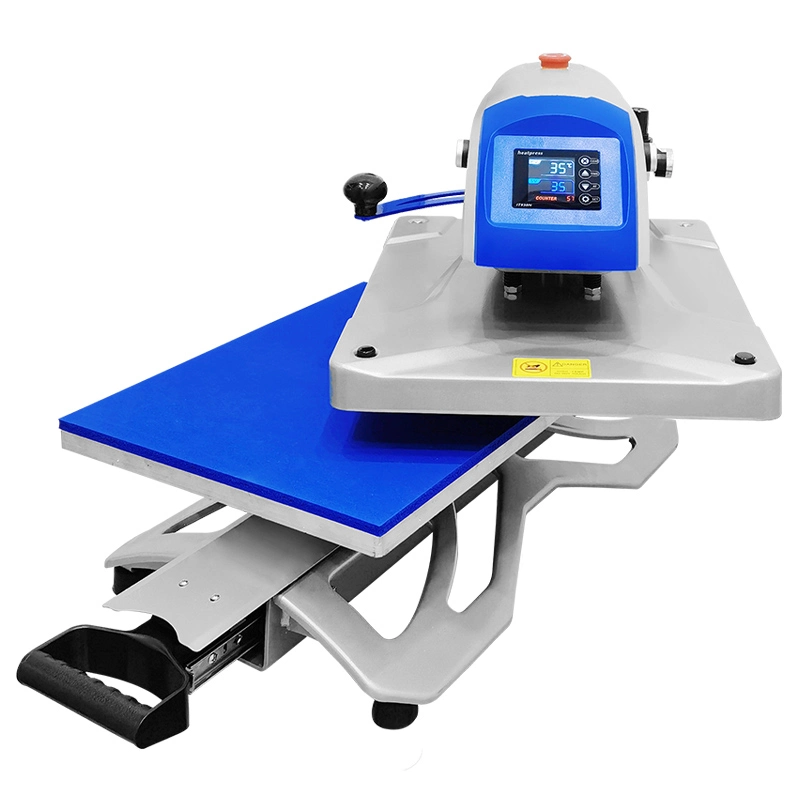

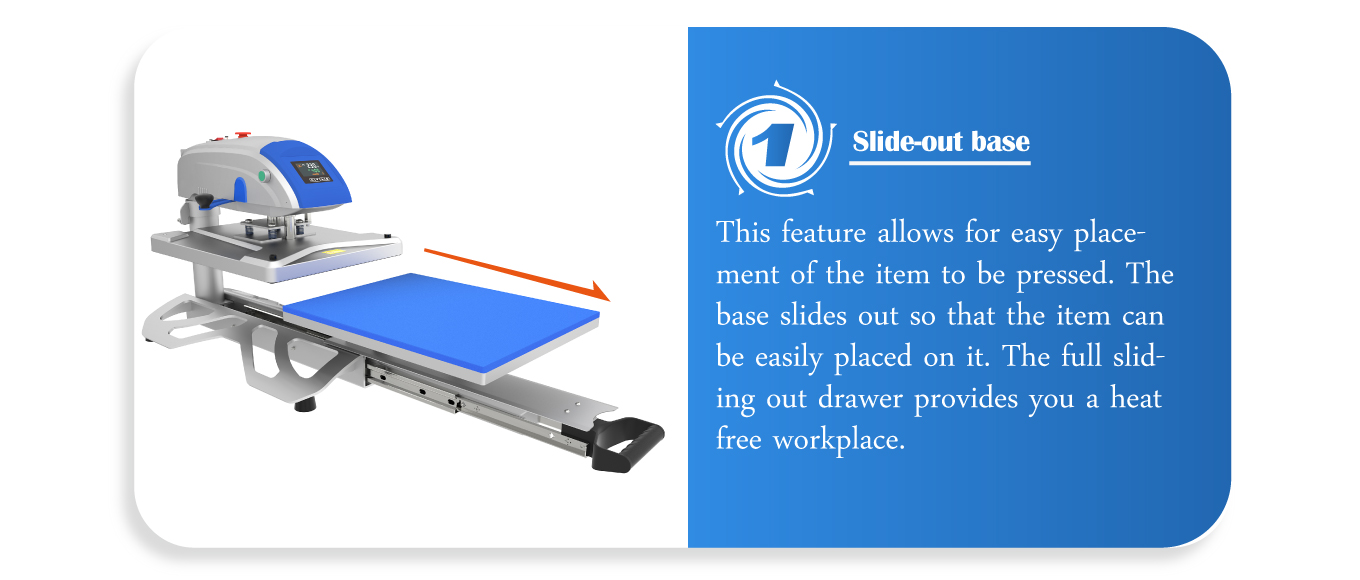

  • Slide-Out Drawer: Simplifies garment loading and unloading, saving time and effort.

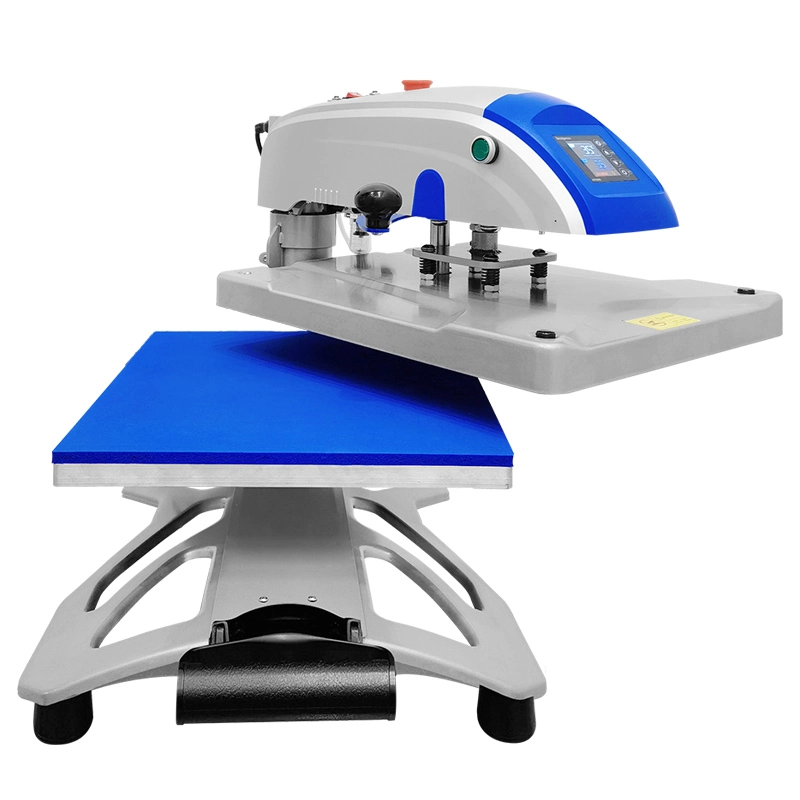

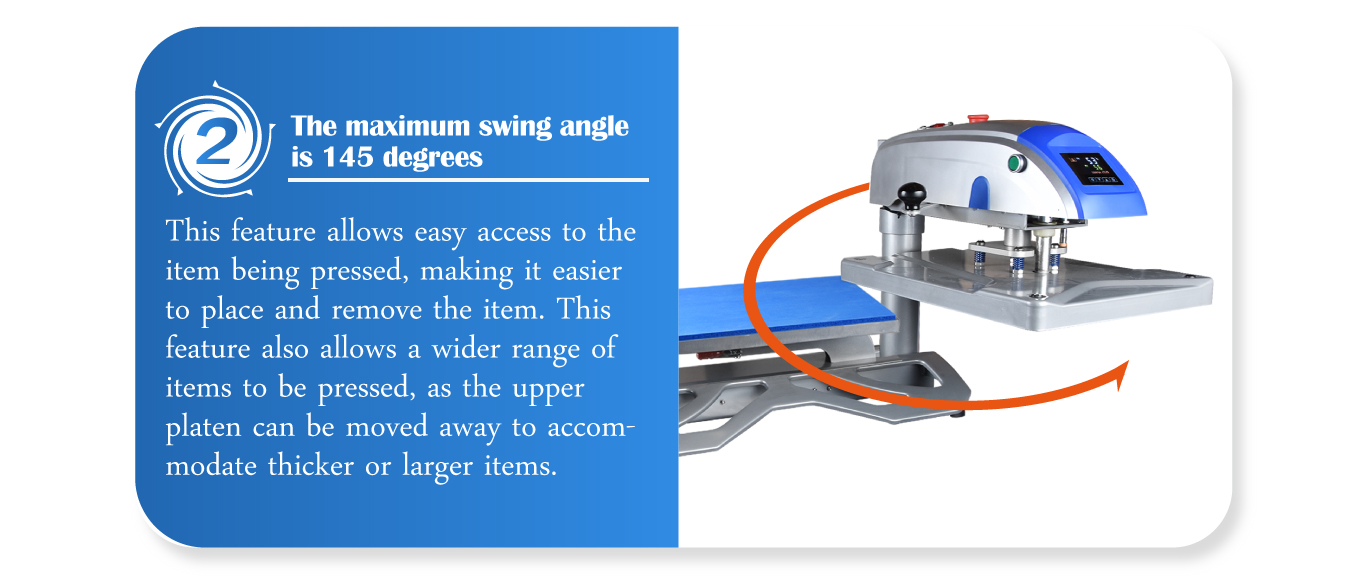

  • Swing-Away: Provides easy access to the platen, ensuring user safety and convenience.

  • Even Heat Distribution: Uniform heating across the press area for high-quality transfers.

  • Improved Workflow: Combines efficiency and quality for an enhanced printing process.

  • Durable Construction: Built to withstand the demands of a busy printing environment.

  • Versatile Size: 16 x 20 Inches heat platen accommodates various garment sizes and types.

  • Enhanced Quality: Ensures vibrant, long-lasting prints business on garments and textiles.

  • Double Protection: Thermal fuse avoids over-heat and circuit breaker avoids over current.

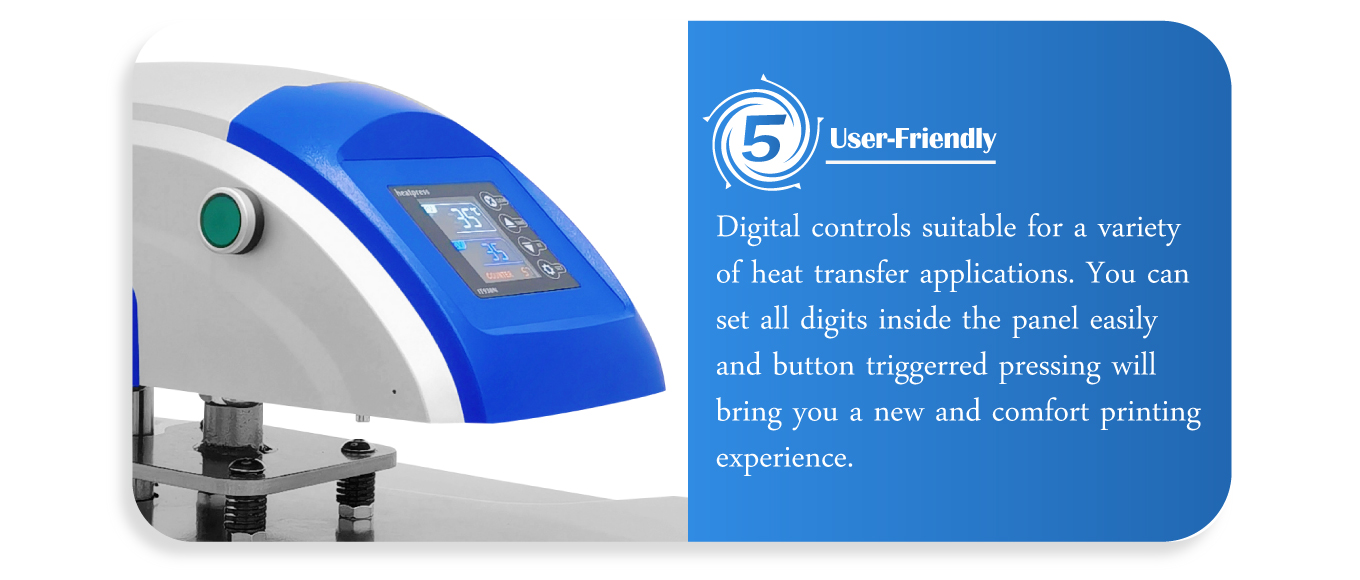

  • User-Friendly: Easy-to-use digital controls suitable for a variety of heat transfer applications.

  • Thread-able Platen: Easy load and unload T-shirts onto the heat press, rotate and print any area.

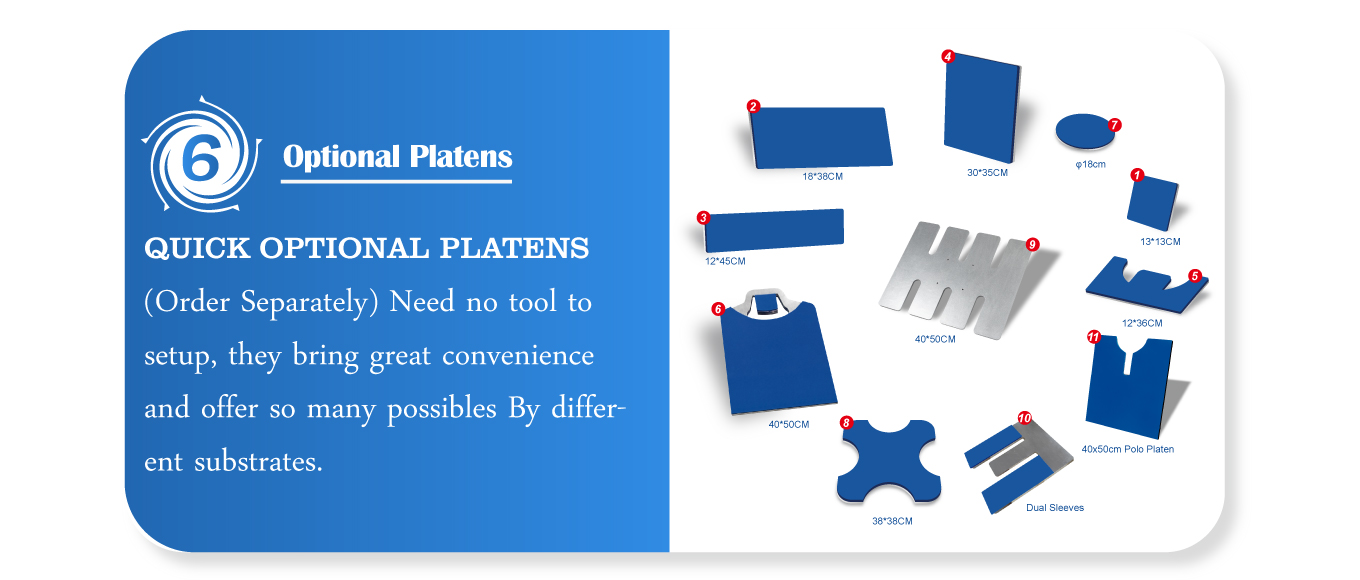

  • Quick Platens: Compatible with over 10 different kinds of lower platens to meet special printings.


As a leading heat press machine factory, we provide OEM/ODM services, dedicated project teams, and full after-sales support. Contact us to see how our craft heat press can boost your business.

Specification of 40x50 Pneumatic Heat Press Pro

ModelB1-N
FeaturesPneumatic | Slide Pro | Quick Platens
Voltage110V - 60Hz | 220V - 50Hz
Heat Platen16" x 20" | 40 x 50cm
Power1800W - 2200W
ControllerLCD Controller V2
Max. Temp.232℃/450°F
Temp. Difference±4°F/2℃
Power-off PresetMax. 120 Mins
Max Timer Preset999 sec.
Max. Downforce500 g/cm² - 40 x 50cm
Pressure SettingAir Regulator

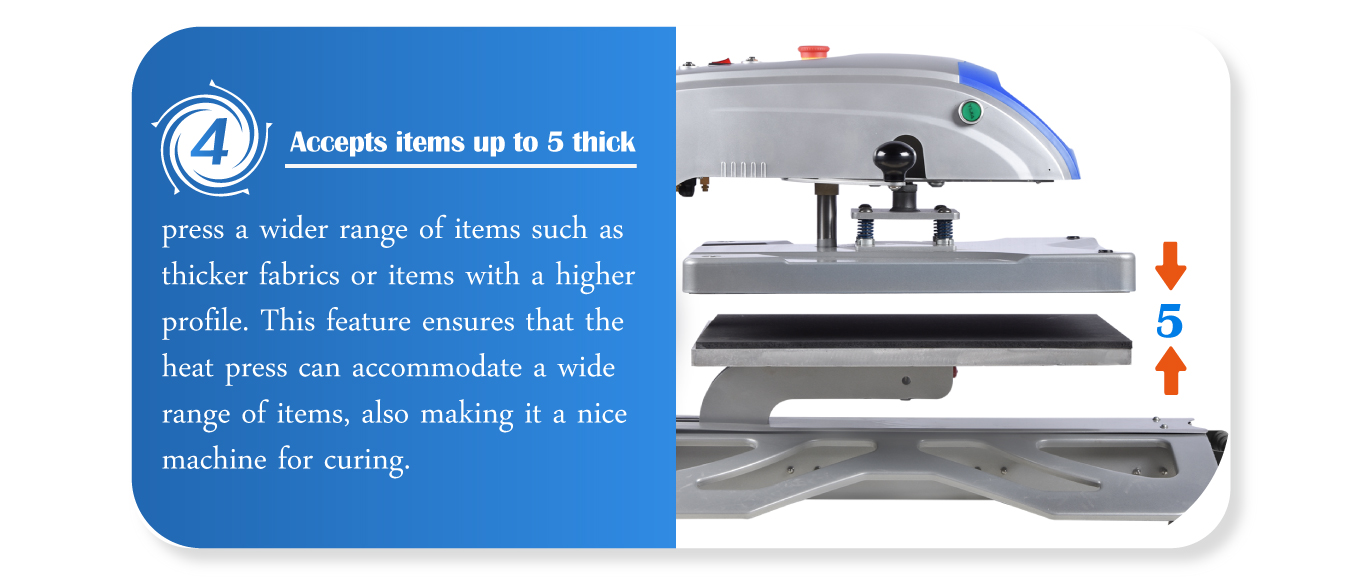

Accept Thickness≤5cm

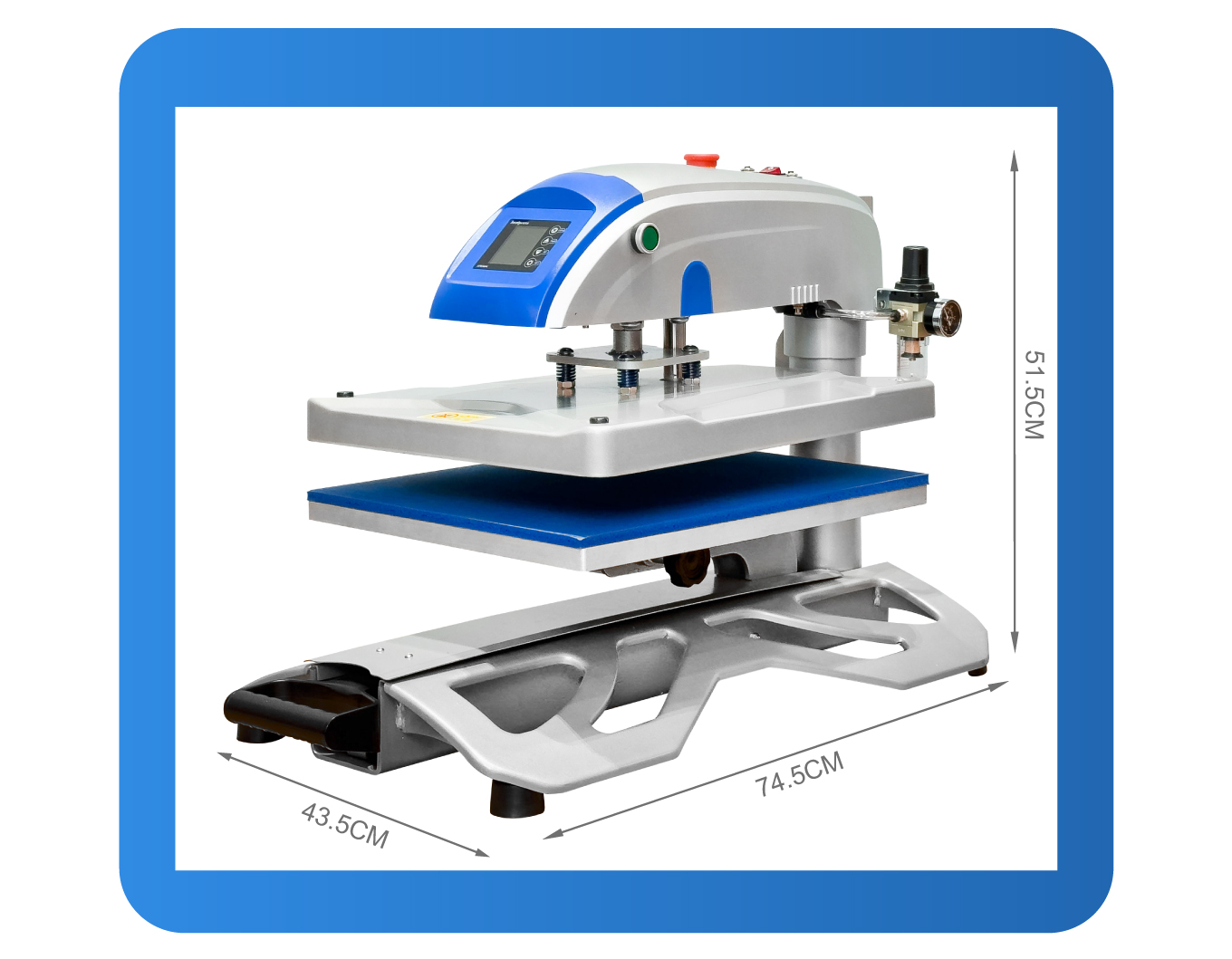

Product Size85 x 44 x 54cm
Package Size86.5 x 54.5 x 72.5cm
Product Weight66kg
Shipping Weight71kg
CertificateCE/UKCA (SGS Audited)


View More View Less

Feature of 40x50 Pneumatic Heat Press Pro

pneumatic heat press machine

pneumatic heat press machine

pneumatic heat press

Video of 40x50 Pneumatic Heat Press Pro
