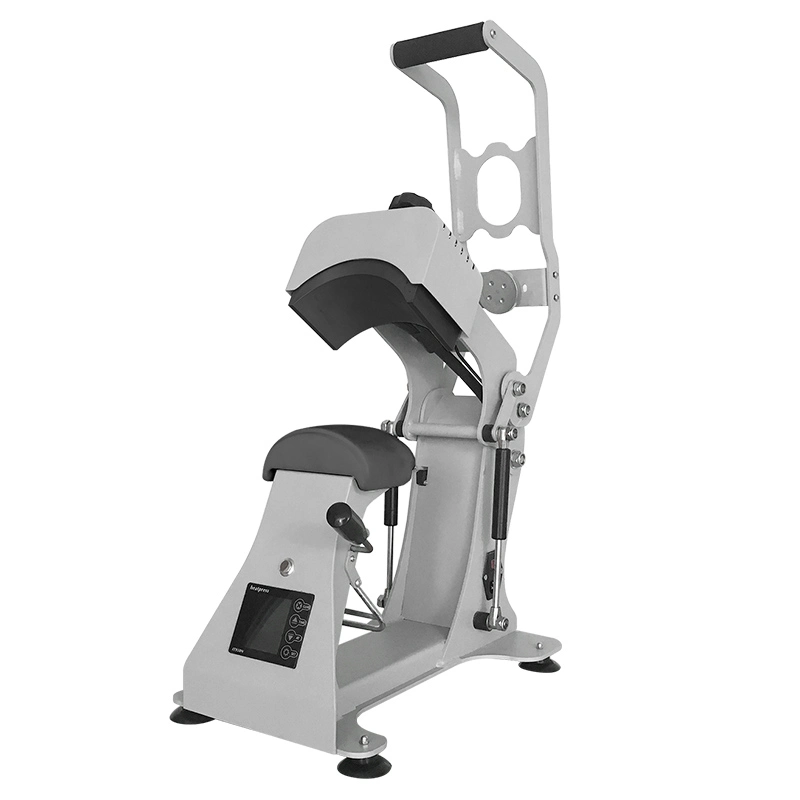

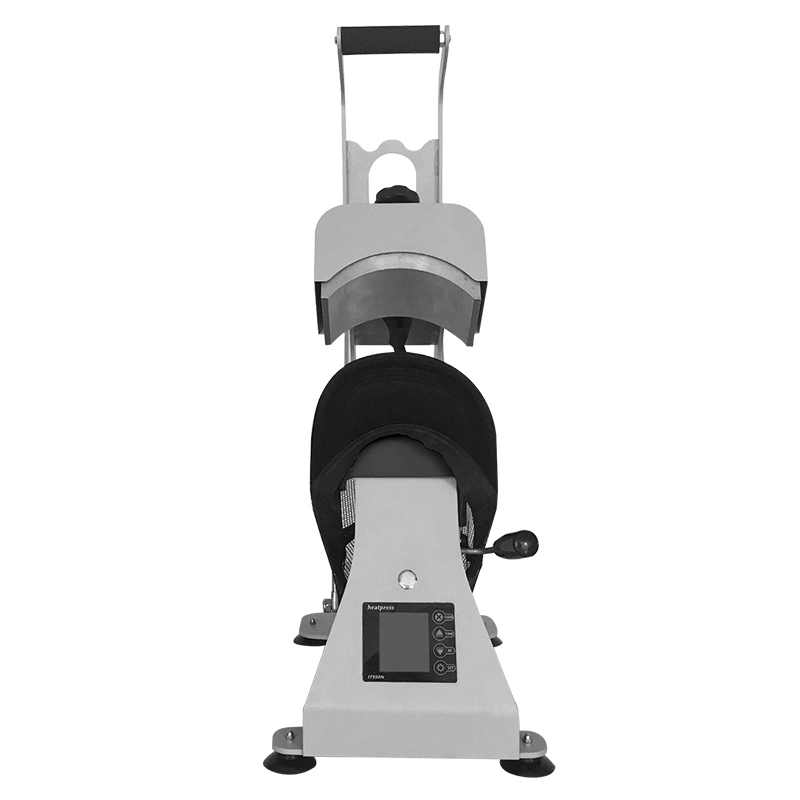

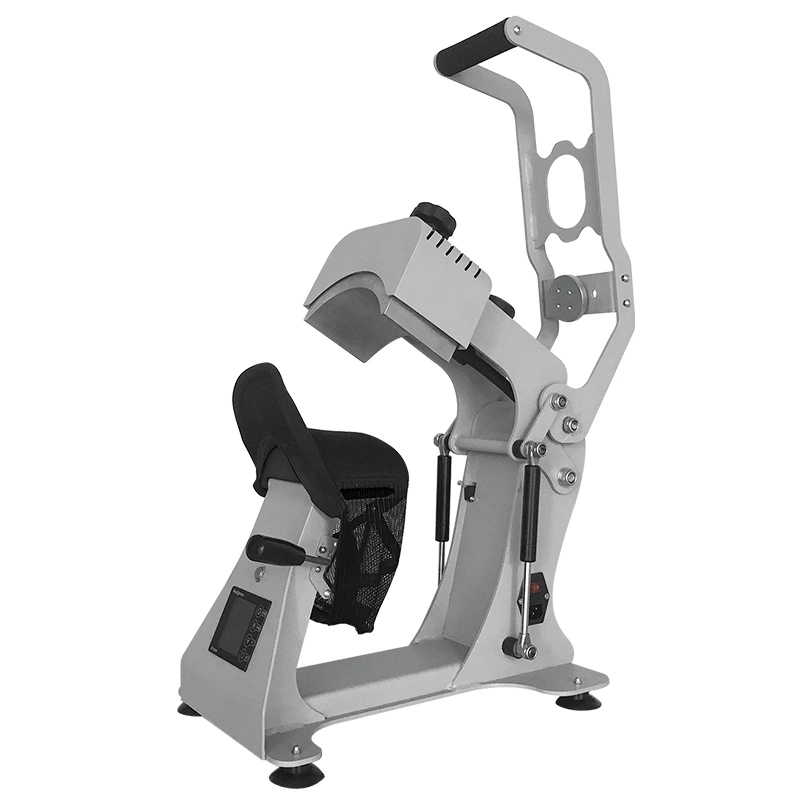

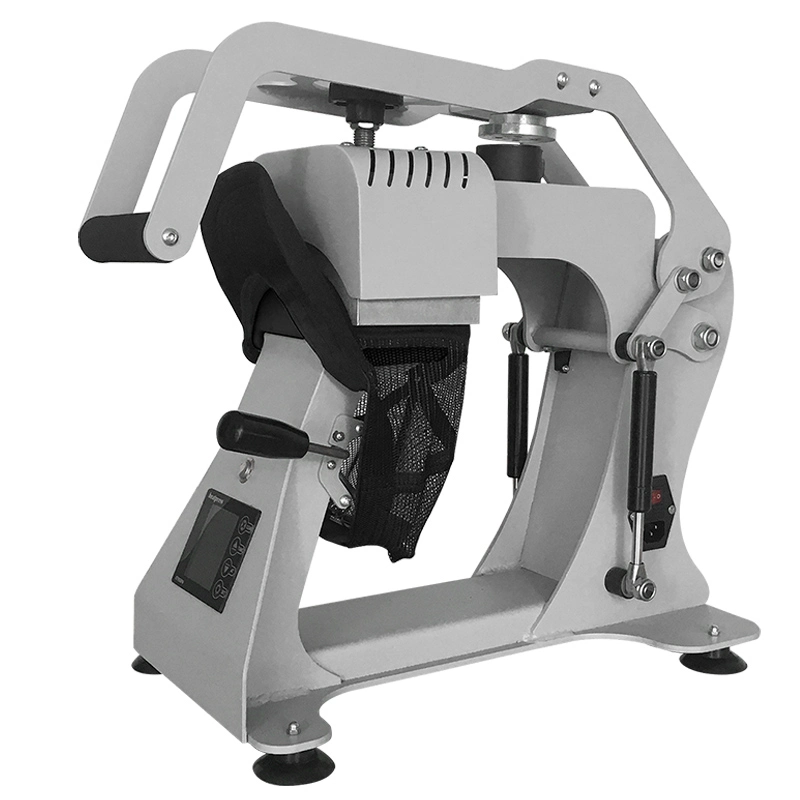

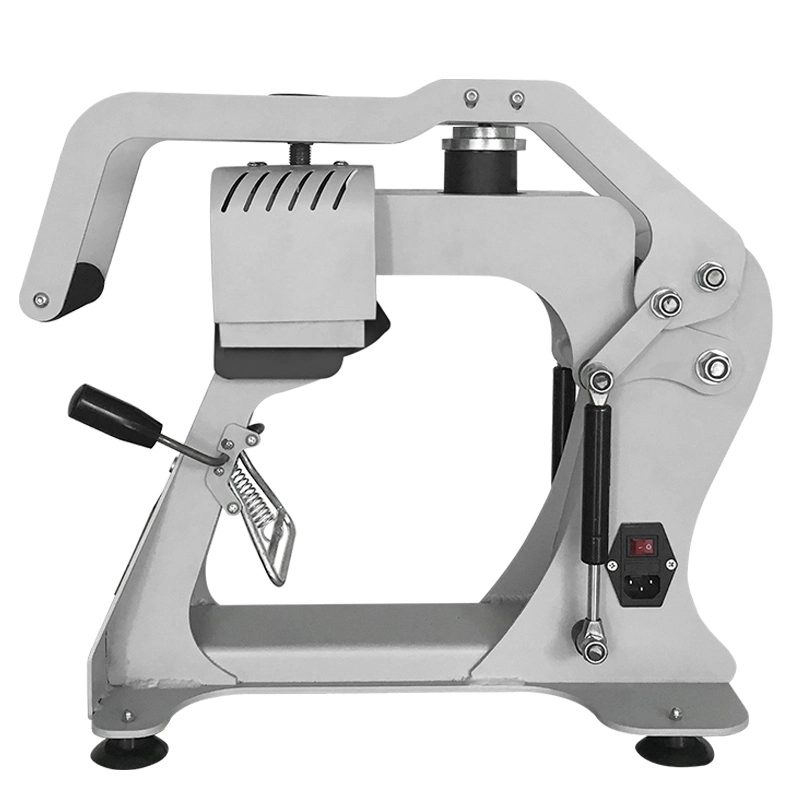

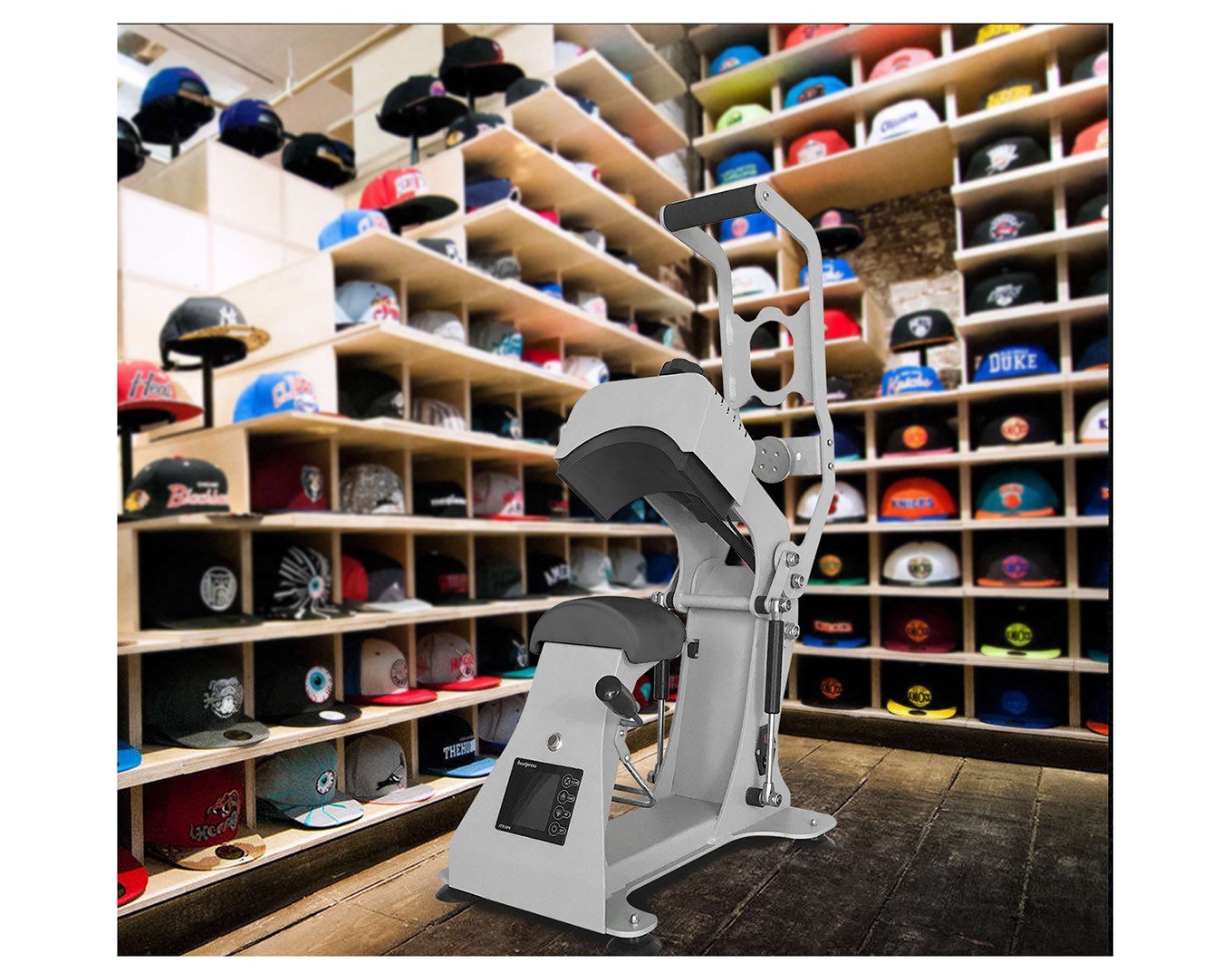

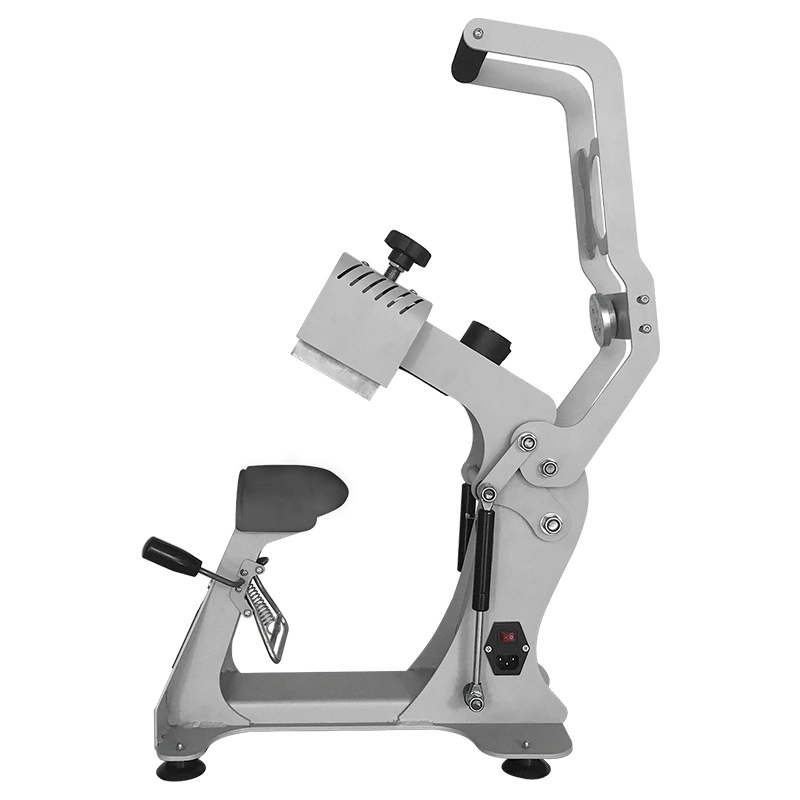

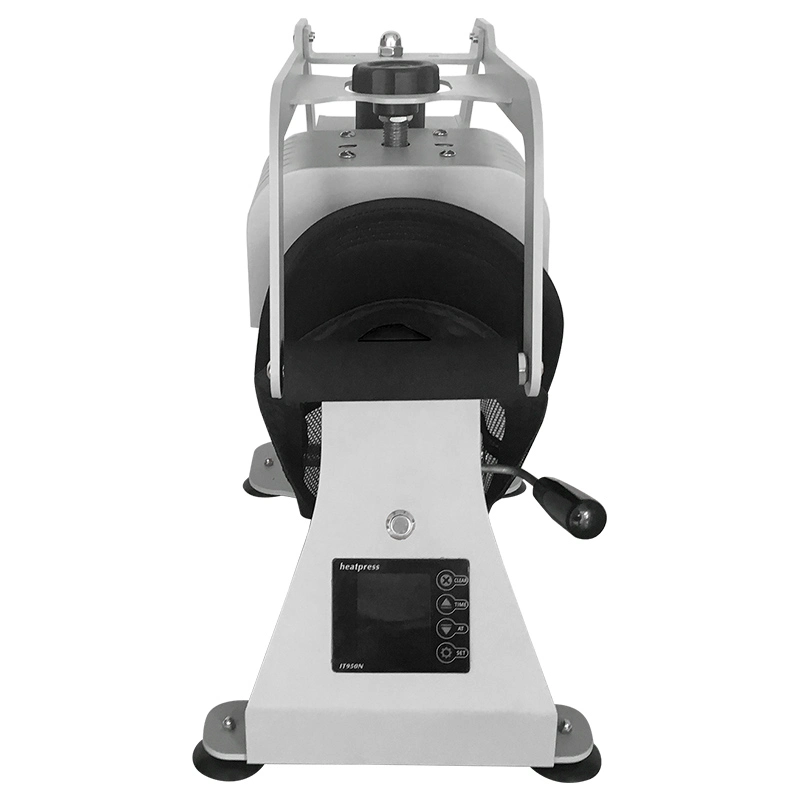

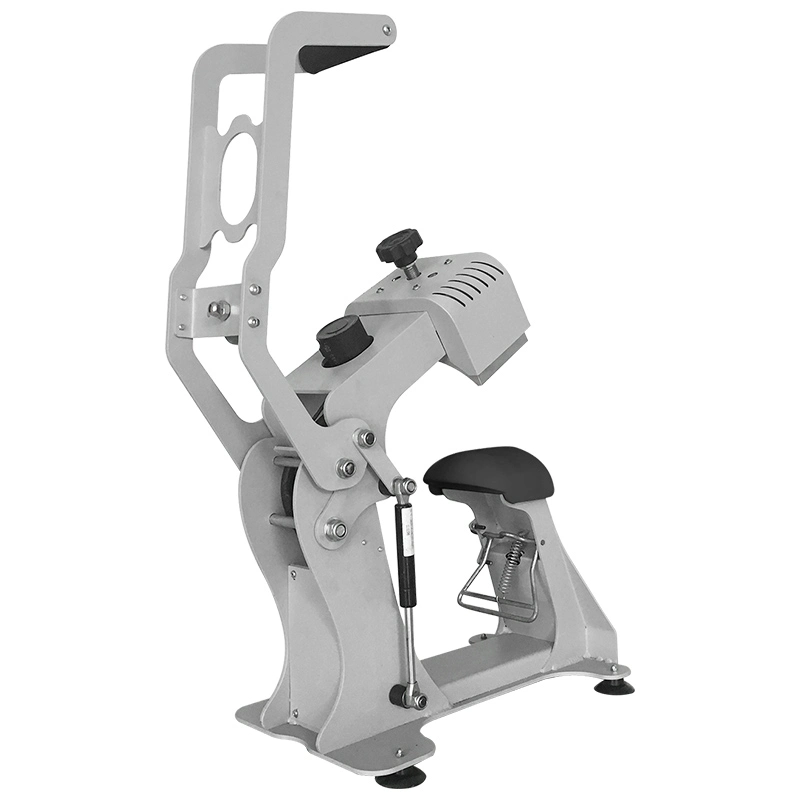

CP2815-2 is a semi-automatic hat heat press with a curved 9.5 × 18 cm platen for cap-decoration businesses and small-batch production. Its Teflon-coated platen, LCD Controller V2, hand-wheel pressure adjustment, and 999-second timer support controlled transfers across various hat sizes and styles.
The curved profile is designed to match hat surfaces during heat-transfer application.
The platen coating supports easier cleaning and adds surface durability.
Semi-automatic operation streamlines repeated cap-transfer cycles for small to medium production runs.
Digital controls provide direct time and temperature settings for repeatable press setup.

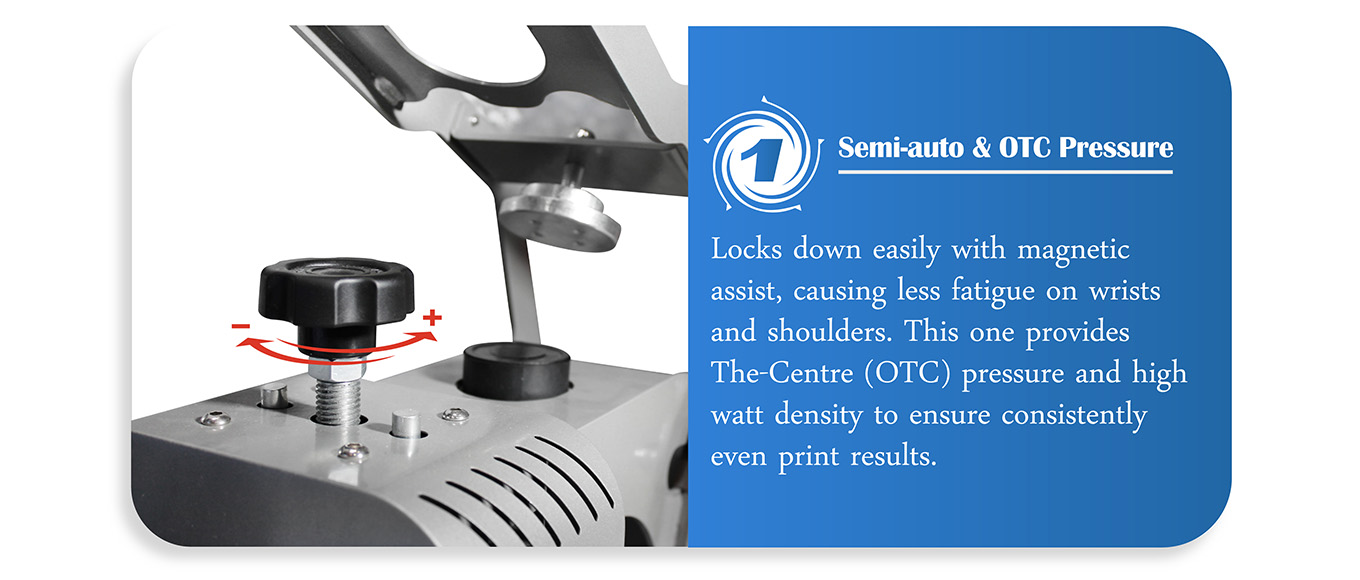

The manual wheel adjusts pressure up to the stated maximum of 250 g/cm².
Timer presets extend to 999 seconds, while power-off can be set up to 120 minutes.
| Specification | Details |
|---|---|
| Model | CP2815-2 |
| Press Type | Semi-Automatic Hat Heat Press |
| Platen Size | 9.5 × 18 cm |
| Lower Platen | Not specified |
| Voltage / Frequency | 110 V / 60 Hz; 220 V / 50 Hz |
| Rated Power | 600 W |
| Controller | LCD Controller V2 |
| Maximum Temperature | 210°C (410°F) |
| Timer Range | 0-999 Seconds |
| Auto Power-Off Timer | Up to 120 Minutes |
| Pressure Control | Hand Wheel |
| Maximum Platen Pressure | 250 g/cm² |
| Maximum Material Thickness | ≤ 1 cm |

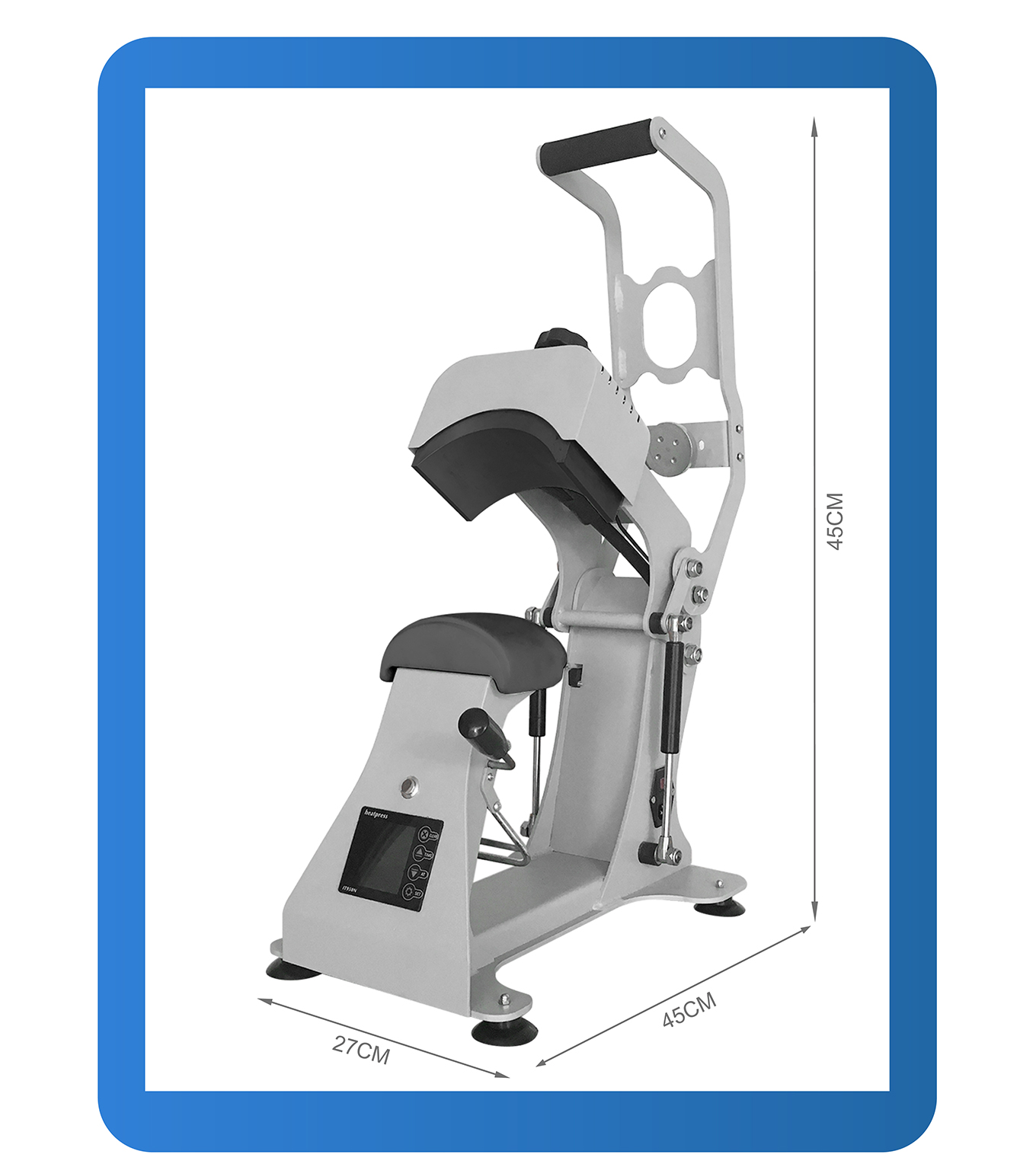

| Machine Dimensions (L × W × H) | 45 × 27 × 45 cm |
| Packing Dimensions (L × W × H) | 59 × 33 × 53 cm |
| Net / Gross Weight | 20 kg / 26 kg |

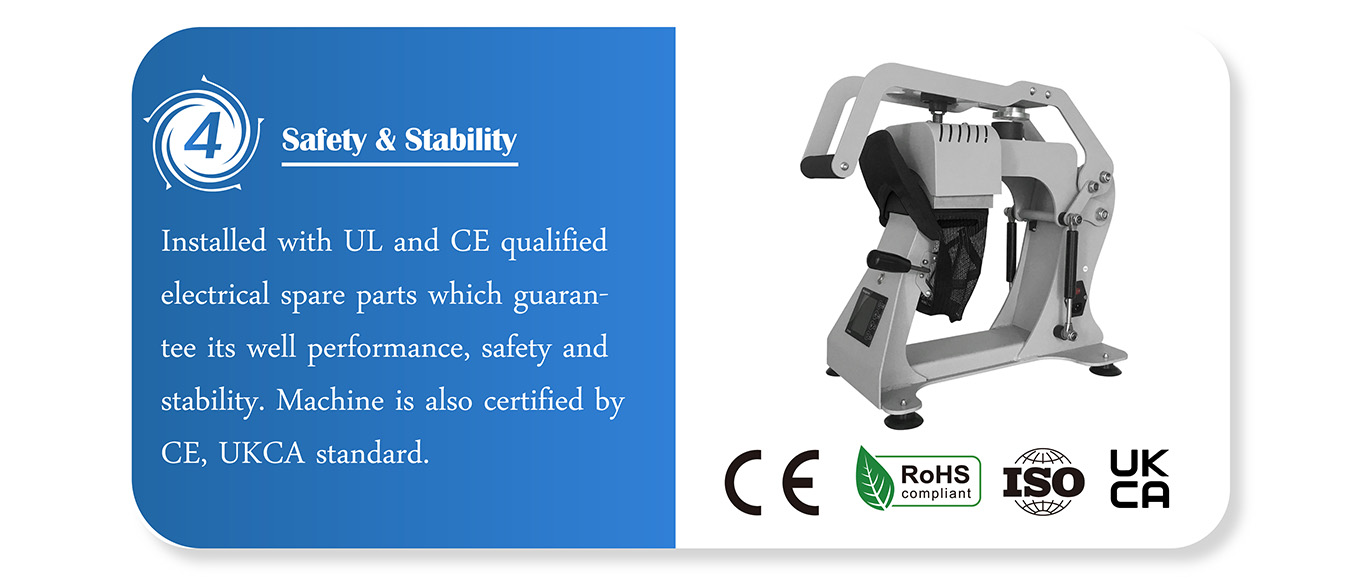

| Compliance | CE / UKCA (SGS Audited) |
