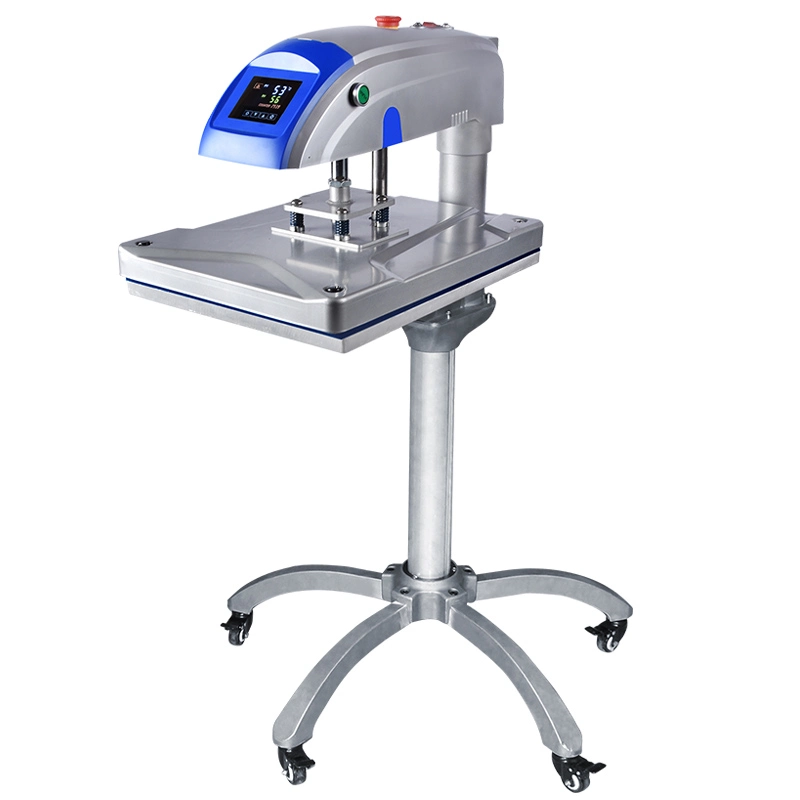

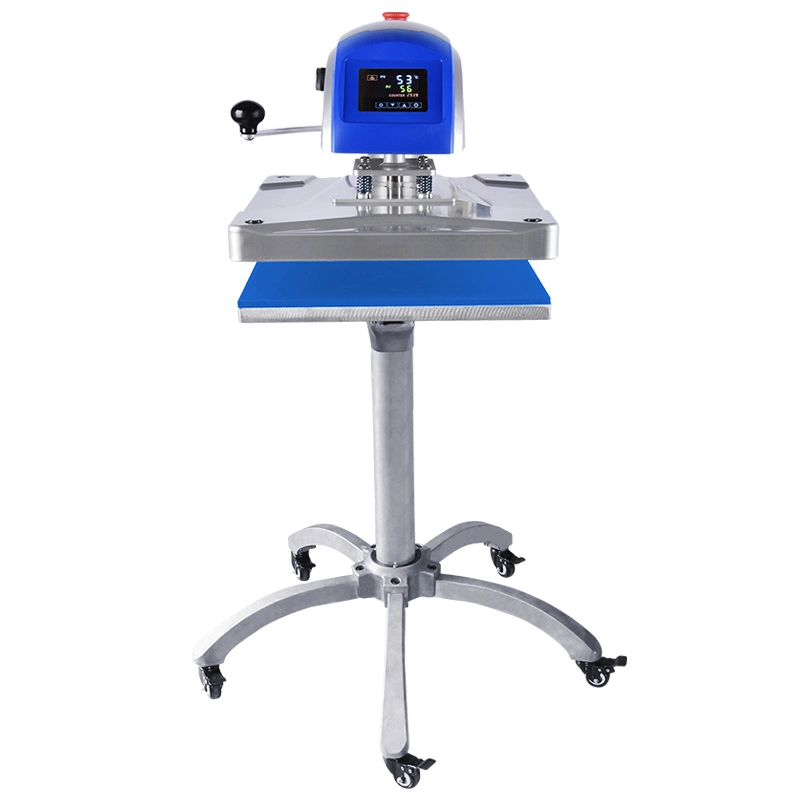

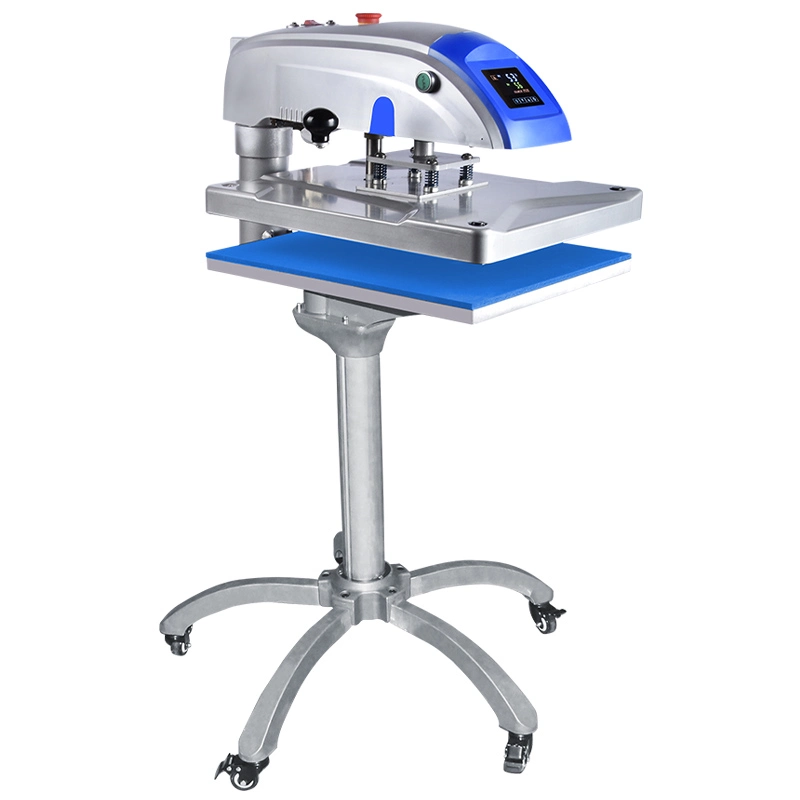

40x50cm Electric Auto Heat Press Machine with Movable Caddie Stand

We’re pleased to introduce this heat press 40 x 50 to you.


  • Model: B2-NC PRO

  • Price: $1419~$1499(Contact us to get discount or dristributor price)

  • Electric Innovation: Electric motor generates even pressure across entire pressing area.

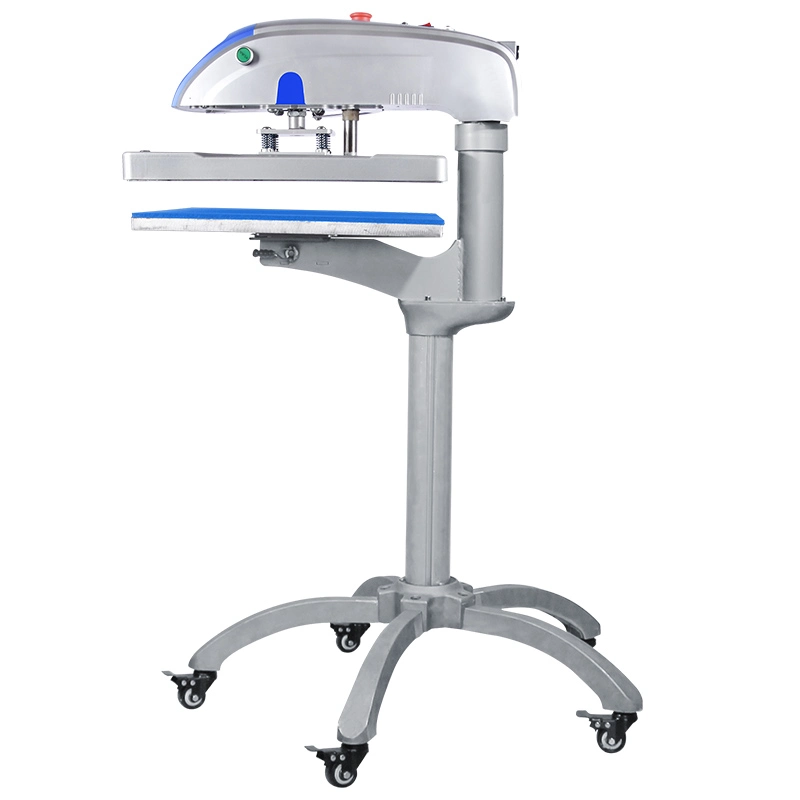

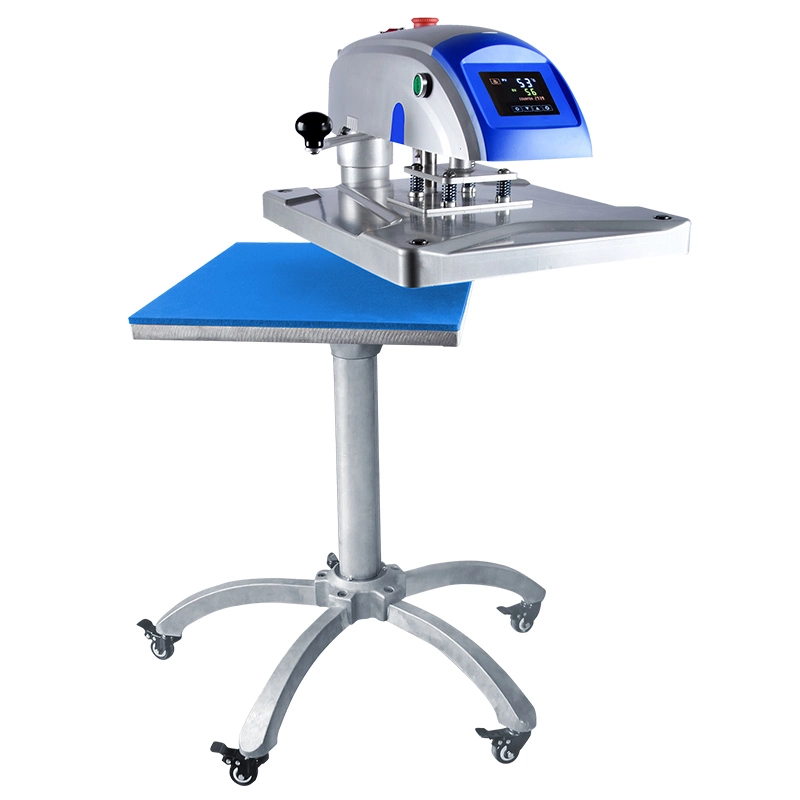

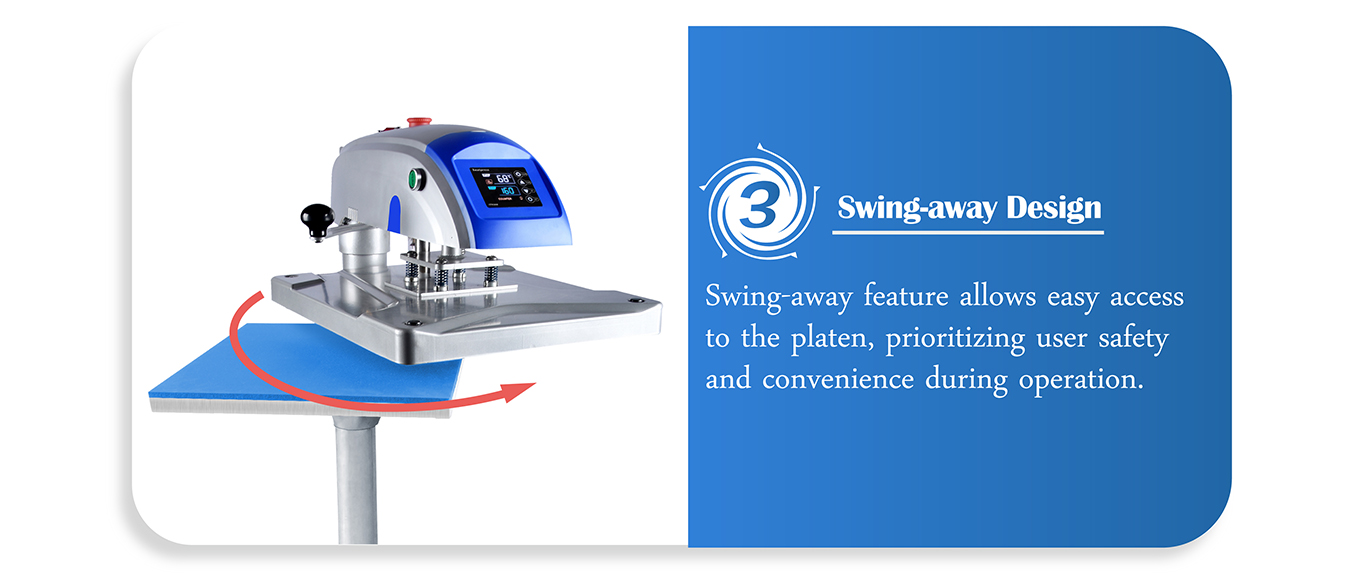

  • Swing-Away: Provides easy access to the platen, ensuring user safety and convenience.

  • Multi-timer Design: Enables user to apply different heat transfers with 1, 2, 3 step printings.

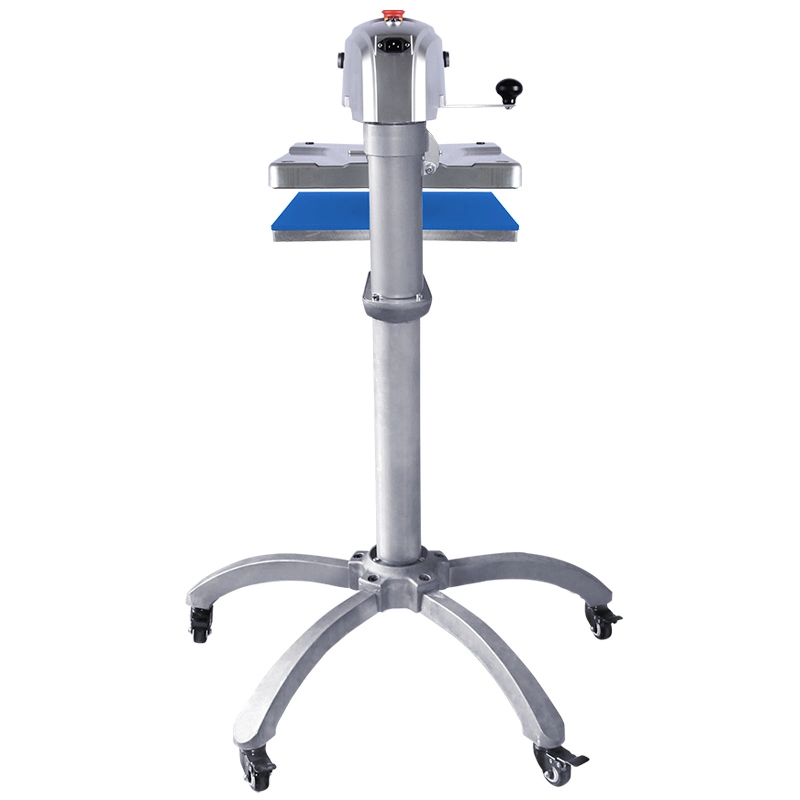

  • Movable Caddie: With die casting aluminum caddie stand for easy moving and supporting.

  • Digital Precision: Accurate temperature, timer and pressure control for consistent results.

  • Even Heat Distribution: Uniform heating across the press area for high-quality transfers.

  • Improved Workflow: Combines efficiency and quality for an enhanced printing process.

  • Durable Construction: Built to withstand the demands of a busy printing environment.

  • Versatile Size: 16 x 20 Inches heat platen accommodates various garment sizes and types.

  • Enhanced Quality: Ensures vibrant, long-lasting prints business on garments and textiles.

  • Double Protection: Thermal fuse avoids over-heat and circuit breaker avoids over current.

  • User-Friendly: Easy-to-use digital controls suitable for a variety of heat transfer applications.

  • Thread-able Platen: Easy load and unload T-shirts onto the heat press, rotate and print any area.

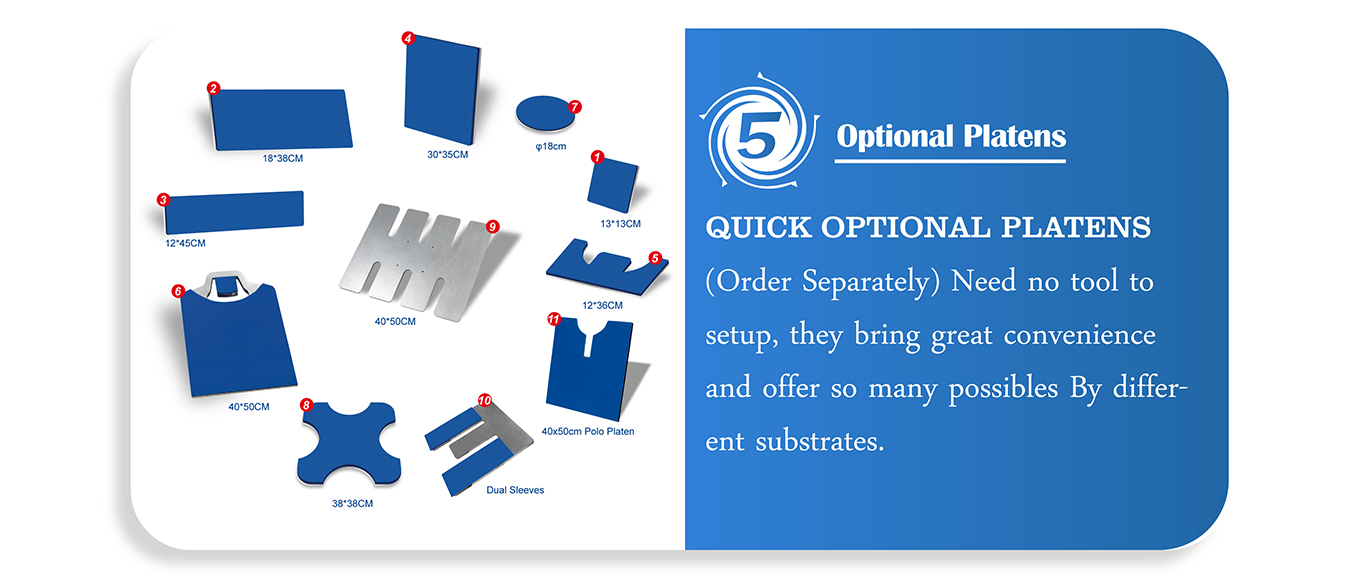

  • Quick Platens: Compatible with over 10 different kinds of lower platens to meet special printings.


As one of the leading heat press companies, we provide OEM/ODM services, dedicated project teams, and full after-sales support. Contact us to see how our craft heat press can boost your business.

Specification of 40x50 Electric Heat Press Plus

ModelB2-NC PRO
FeaturesElectric | Swing | Caddie | Quick Platens | Curing
Voltage110V - 60Hz | 220V - 50Hz
Heat Platen16" x 20" | 40 x 50cm
Power1800W - 2200W
ControllerLCD Controller V3
Max. Temp.232℃/450°F
Temp. Difference±4°F/2℃
Power-off PresetMax. 120 Mins
Max Timer Preset999 sec.
Max. Downforce300 g/cm² - 40 x 50cm
Pressure SettingDigital Control
Accept Thickness≤4.5cm

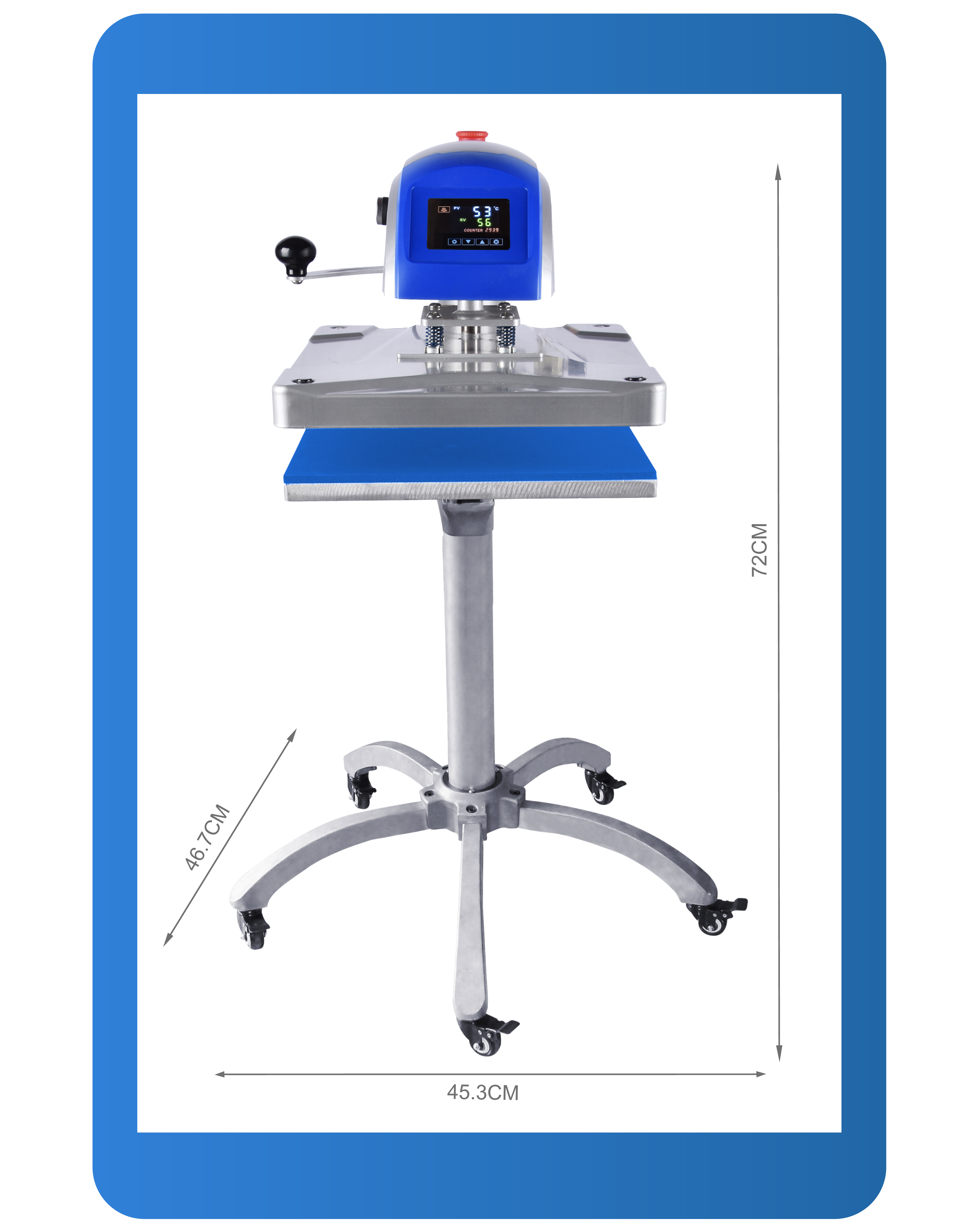

Product Size60 x 52 x 112cm
Package Size87 x 57 x 78cm - Machine, 79.5 x 65 x 14cm - Caddie
Product Weight42kg - Machine, 12kg - Caddie
Shipping Weight56.5kg - Machine, 14kg - Caddie
CertificateCE/UKCA (SGS Audited)


View More View Less

Feature of 40x50 Electric Heat Press Plus




heat press 40 x 50

auto heat press

auto press heat press


Video of 40x50 Electric Heat Press Plus
