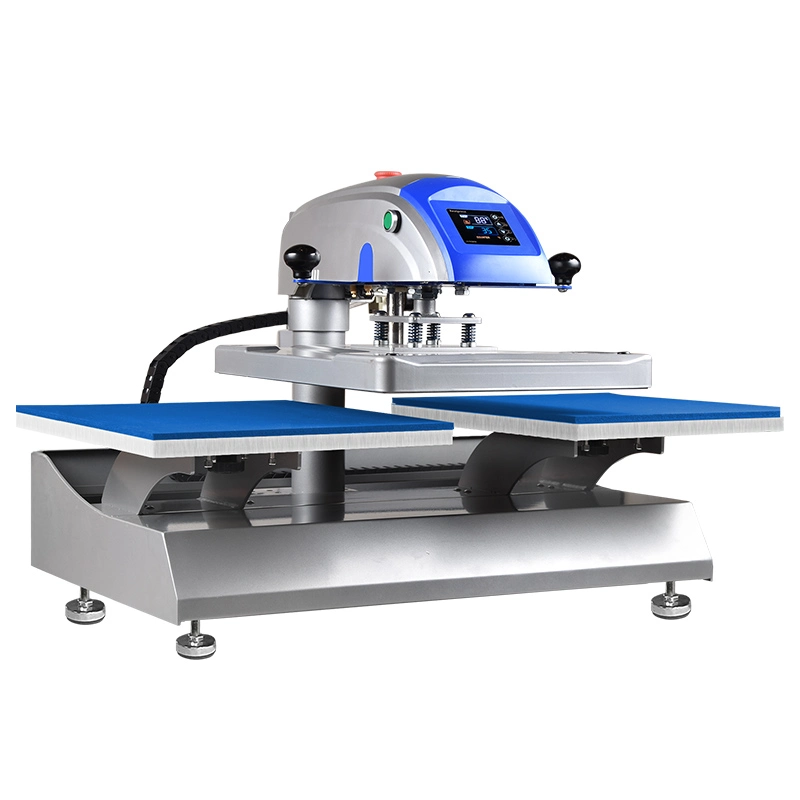

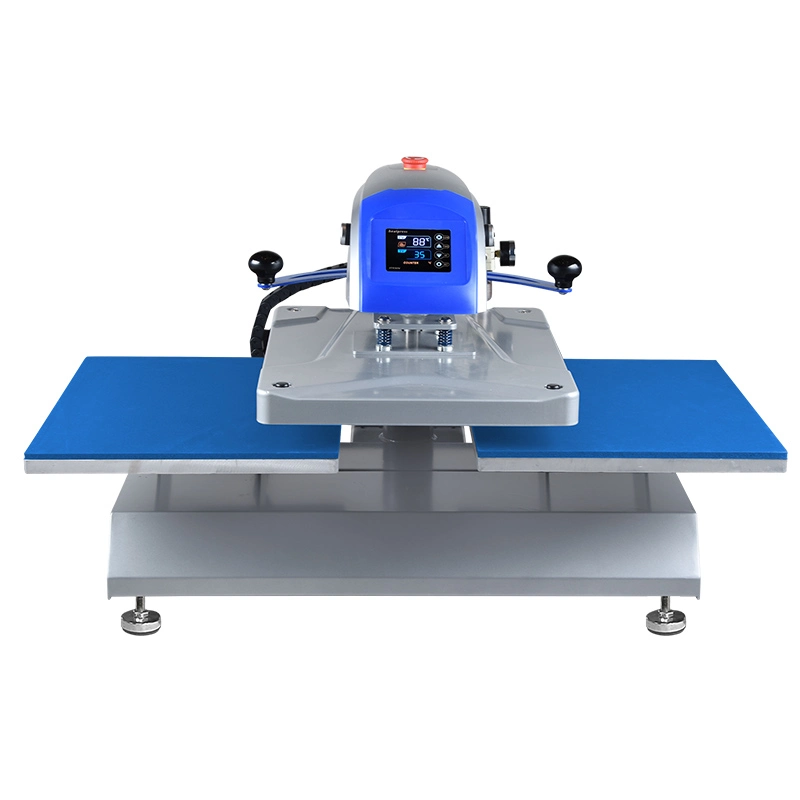

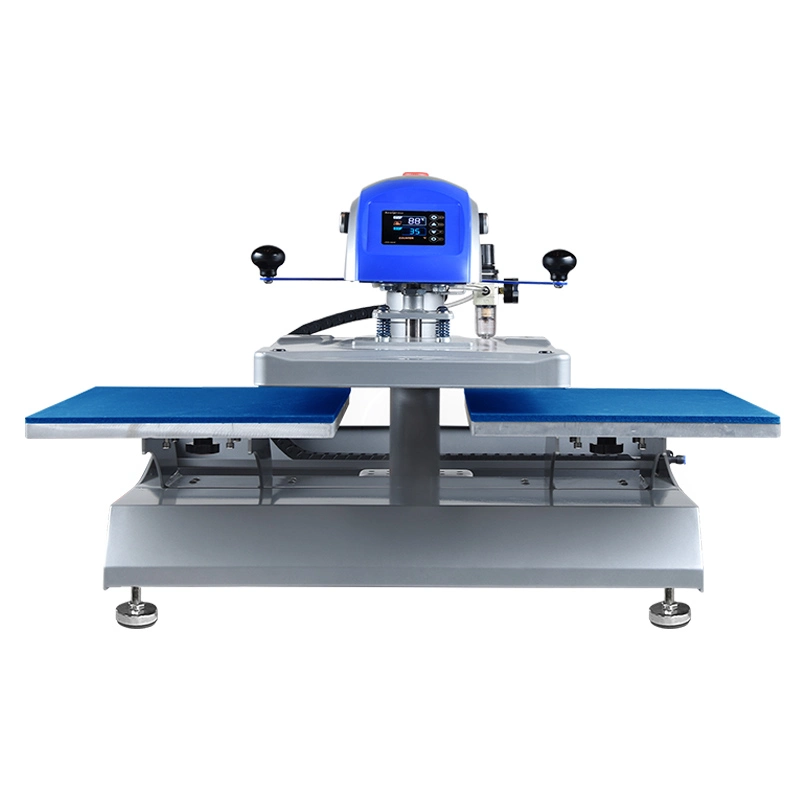

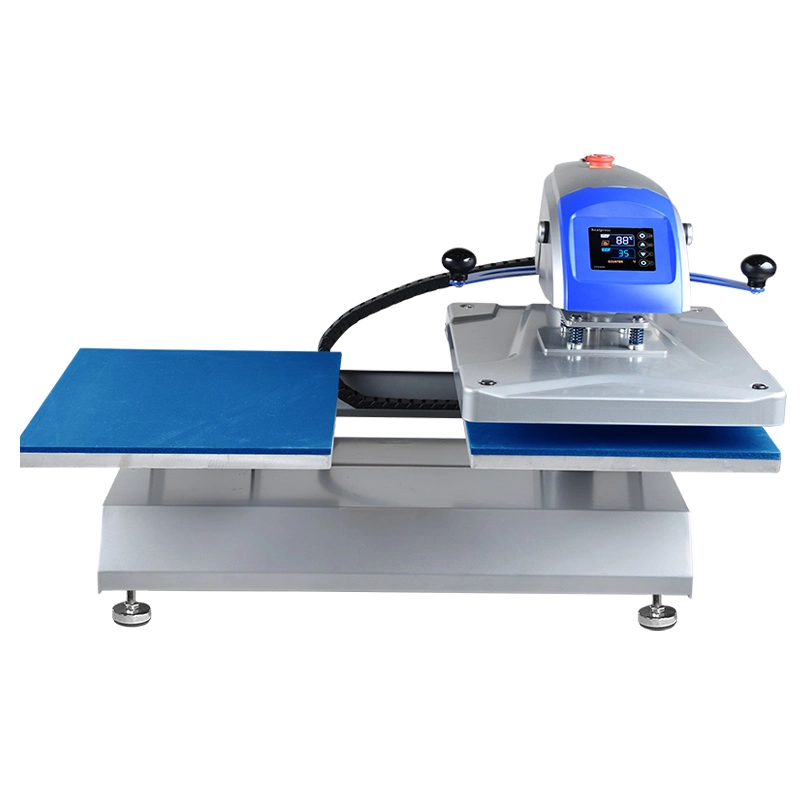

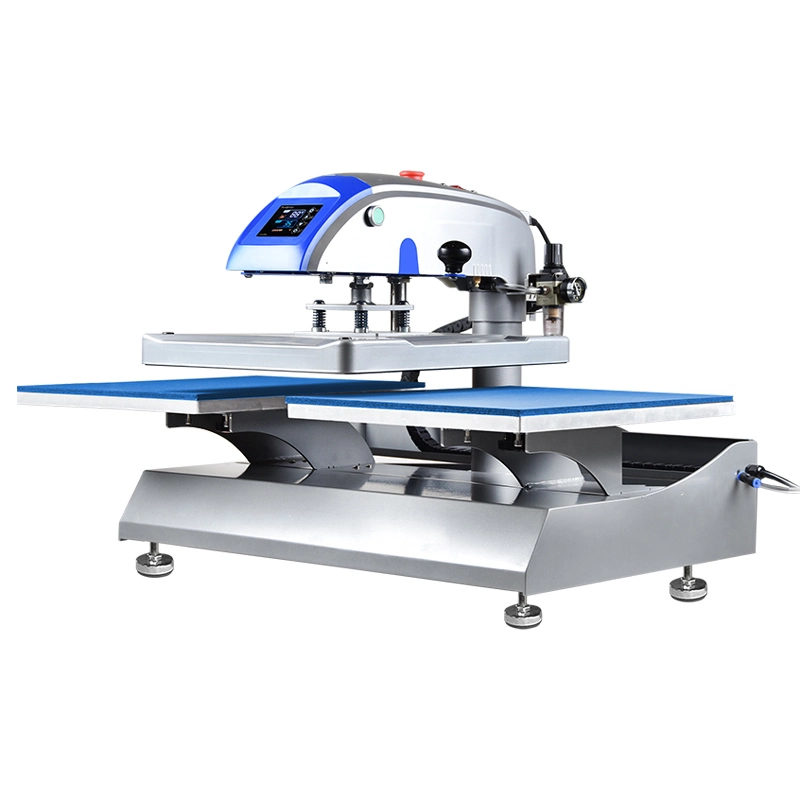

We’re pleased to introduce this dual heat press to you.
Model: B1-2N
Price: $789-$1789（Contact us to get discount or dristributor price）
Advanced LCD Controller: It Provides precise temperature and timer settings for reliable results.

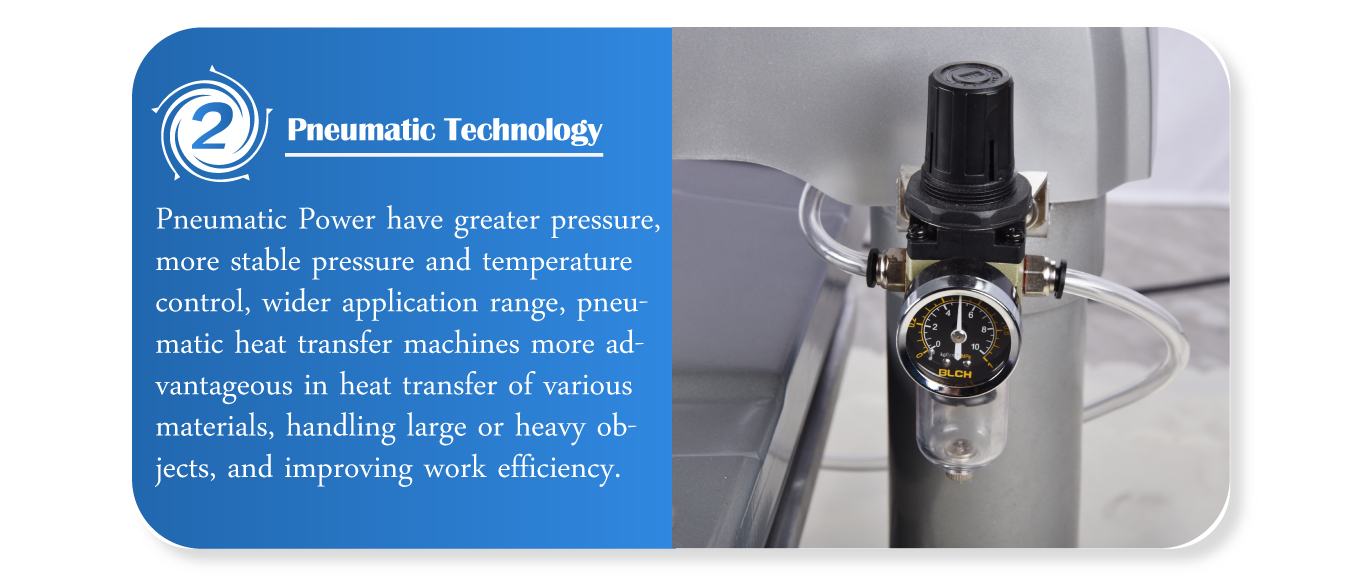

Air Piston Generated: The Air cylinder applies uniform pressure across the entire press surface.

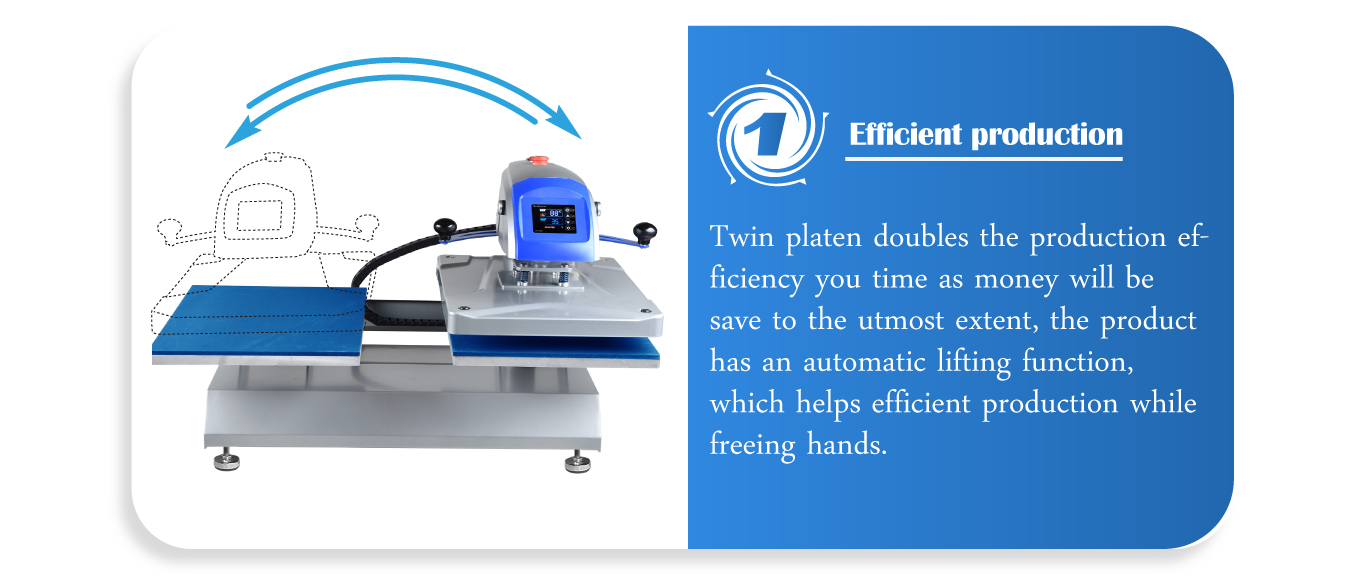

High Production Efficiency: Ideal for large-scale printing operations, increasing business profitability.

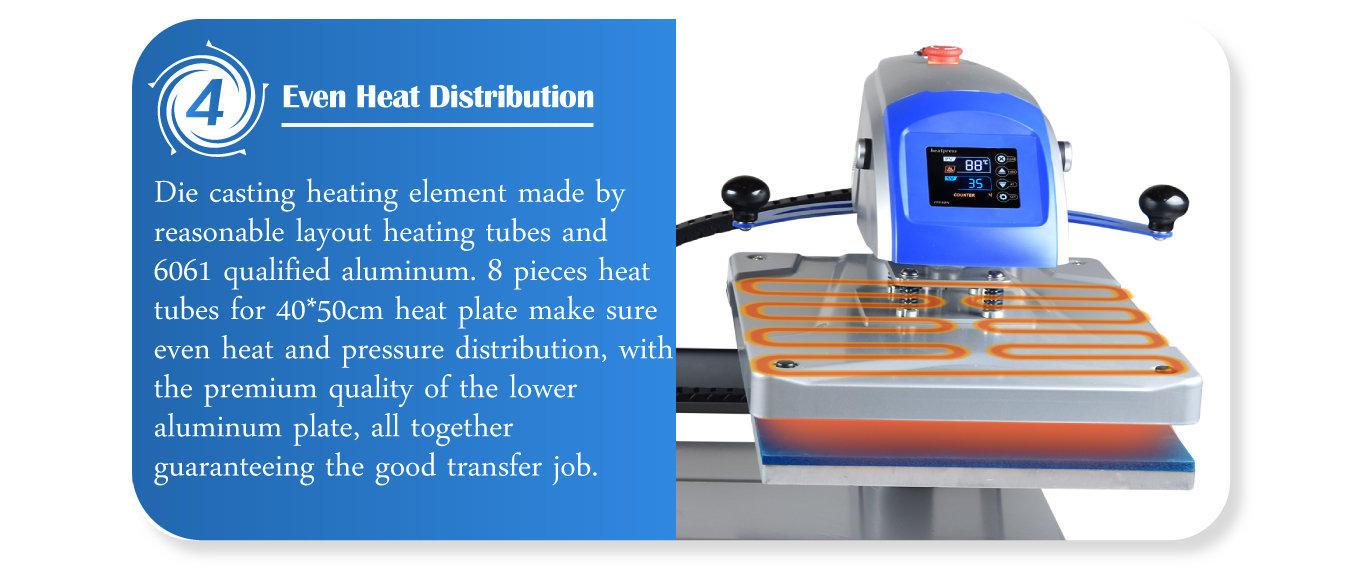

Even Heating distribution: Provides uniform heating across the entire press area for the highest quality transfers.
Streamlined Workflow: Blends efficiency and quality for a superior printing process.
Sturdy and Durable: Designed to withstand the rigors of demanding printing.
Heating Size: 16 x 20-inch/40x50cm heat platen accommodates a wide range of garment sizes and types.
High-Quality Printing: Ensures vibrant, durable prints on garments and textiles.
Triple Thermal Protector: The thermal fuse prevents overheating, circuit breaker prevents overcurrent to ensure safety.
Easy to Use: Intuitive digital controls for a wide range of heat transfer applications.
Thread-able Platen: Easily load and unload T-shirts, and the thread-able platen allows for a variety of prints.

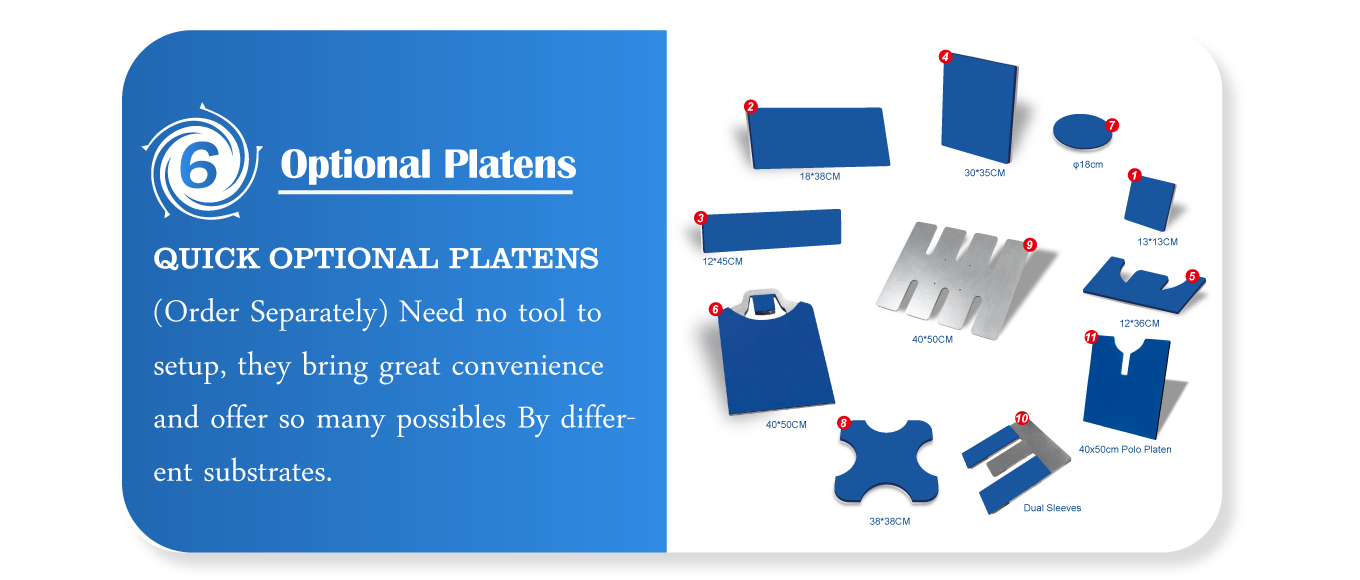

Various Size Platen: Compatible with over 11 different lower platens to meet different printing needs.
As one of the leading heat press companies, we provide OEM/ODM services, dedicated project teams, and full after-sales support. Contact us to see how our craft heat press can boost your business.
| Specification | Details |
|---|---|
| Model | B1-N |
| Press Type | Pneumatic, swing-away |
| Platen Size | 16" × 20" (40 × 50 cm) |
| Lower Platen | Slide-out, threadable; compatible with over 10 platen types |
| Voltage / Frequency | 110 V / 60 Hz; 220 V / 50 Hz |
| Rated Power | 1,800–2,200 W |
| Controller | LCD Controller V2 |
| Maximum Temperature | 210°C (410°F) |
| Timer Range | 0-999 Seconds |
| Auto Power-Off Timer | Up to 120 Minutes |
| Pressure Control | Air regulator |
| Maximum Platen Pressure | 500 g/cm² (40 × 50 cm platen) |

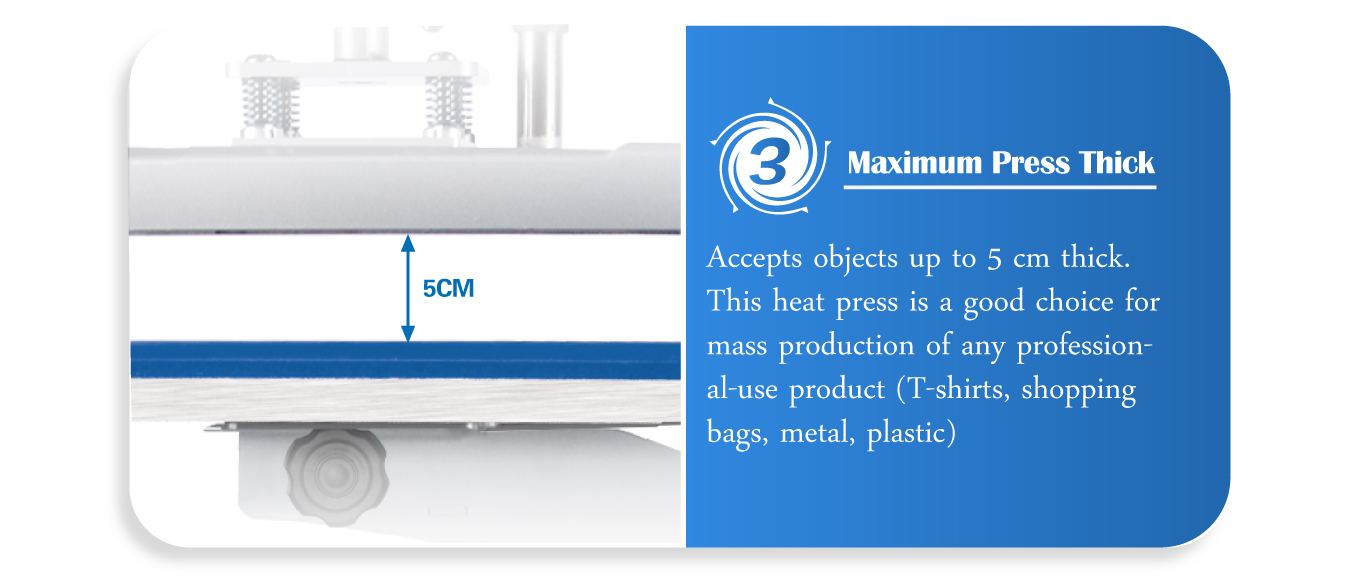

| Maximum Material Thickness | ≤5 cm |
| Machine Dimensions (L × W × H) | 85 × 44 × 54 cm |
| Packing Dimensions (L × W × H) | 86.5 × 54.5 × 72.5 cm |
| Net / Gross Weight | 66 kg / 71 kg |
| Compliance | CE / UKCA (SGS Audited) |
