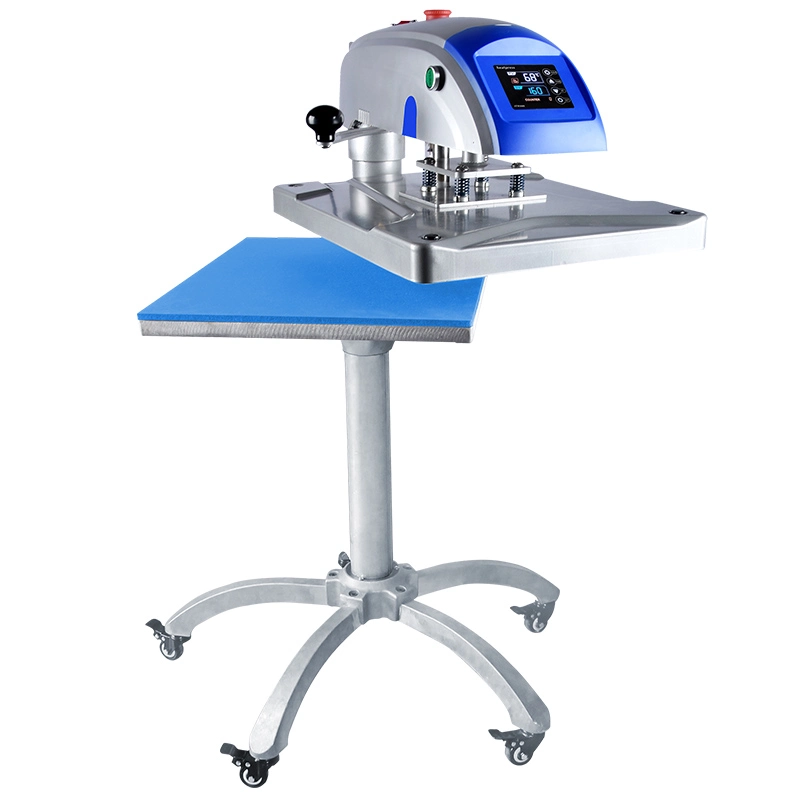

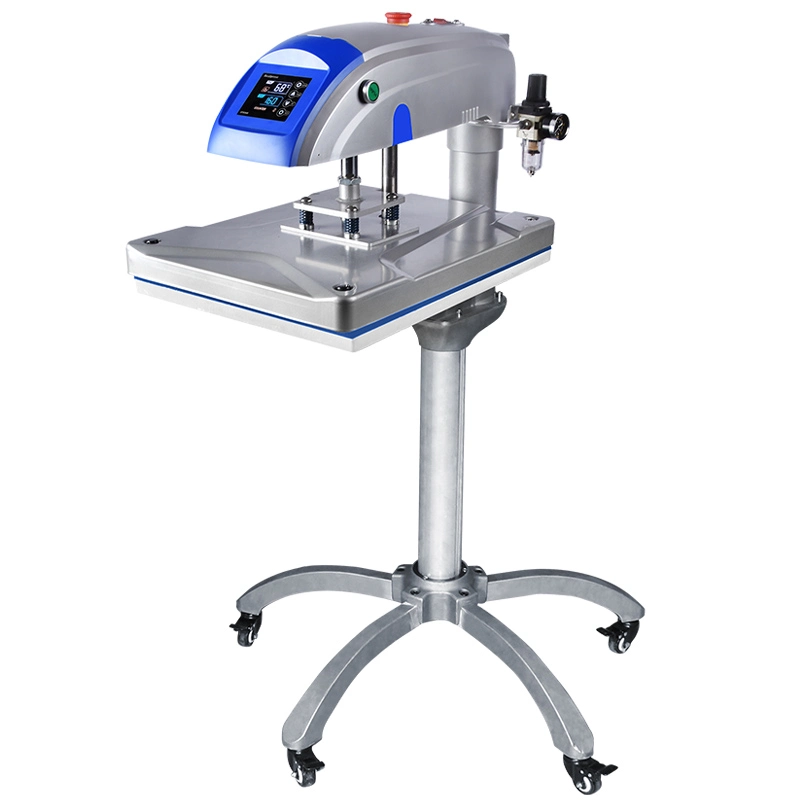

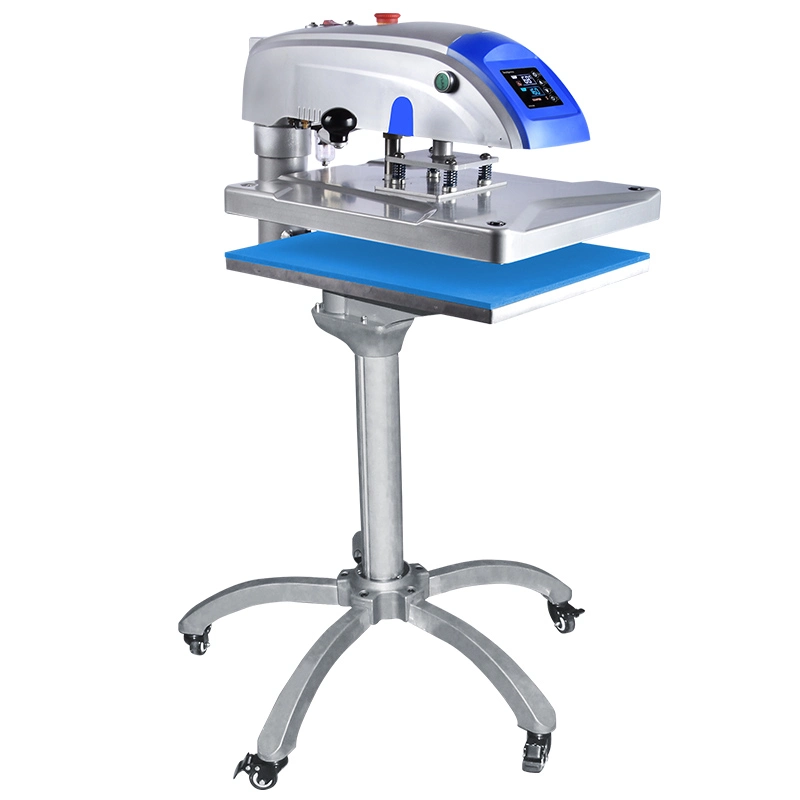

B1-NC PRO is a 40 × 50 cm pneumatic swing-away heat press designed for garment decoration in busy workshops. Its LCD Controller V2, air-regulator pressure setting, movable caddie, and interchangeable lower platens support efficient transfers on T-shirts, garments, and textiles.

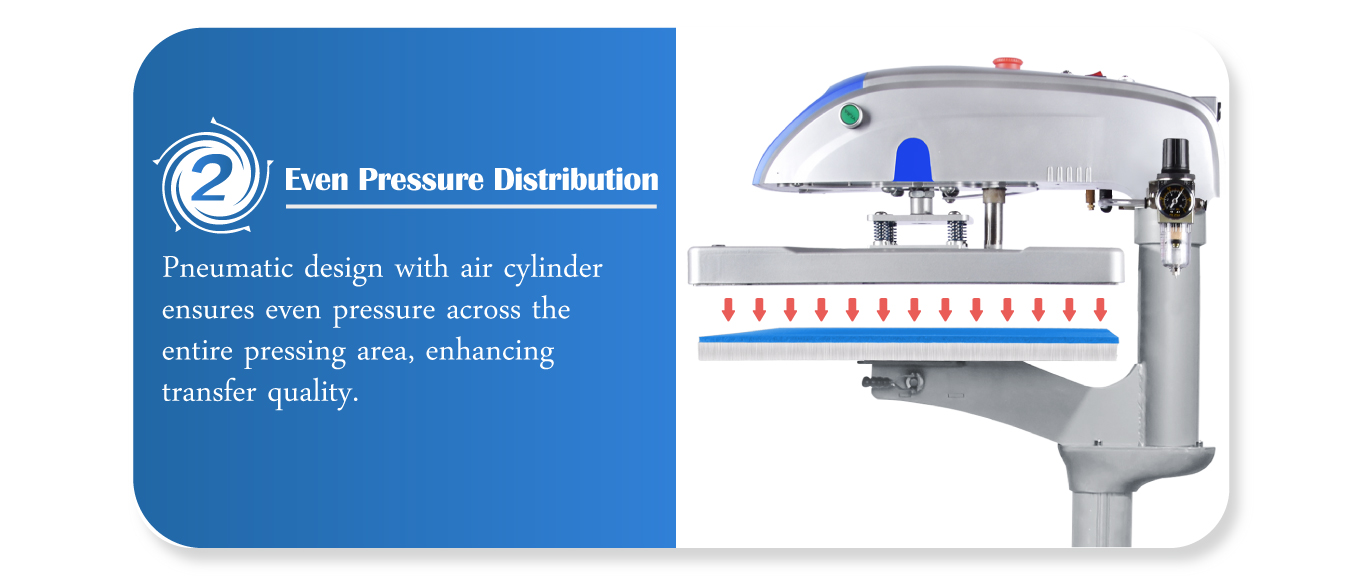

The air cylinder applies pressure across the full platen during each pressing cycle.

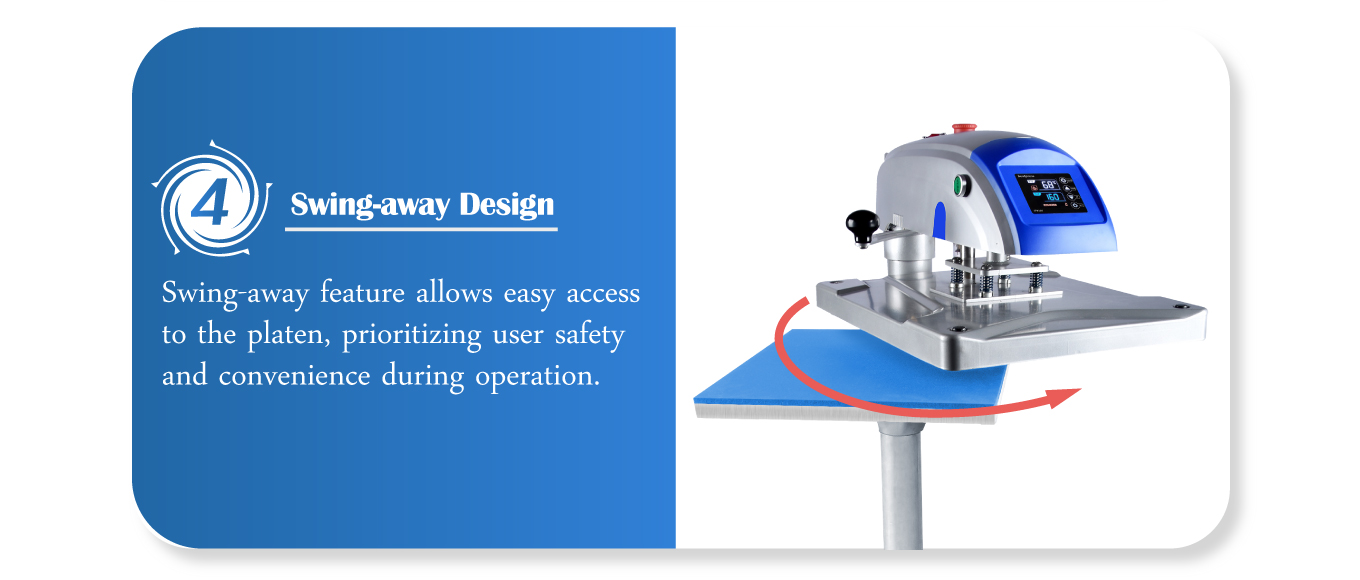

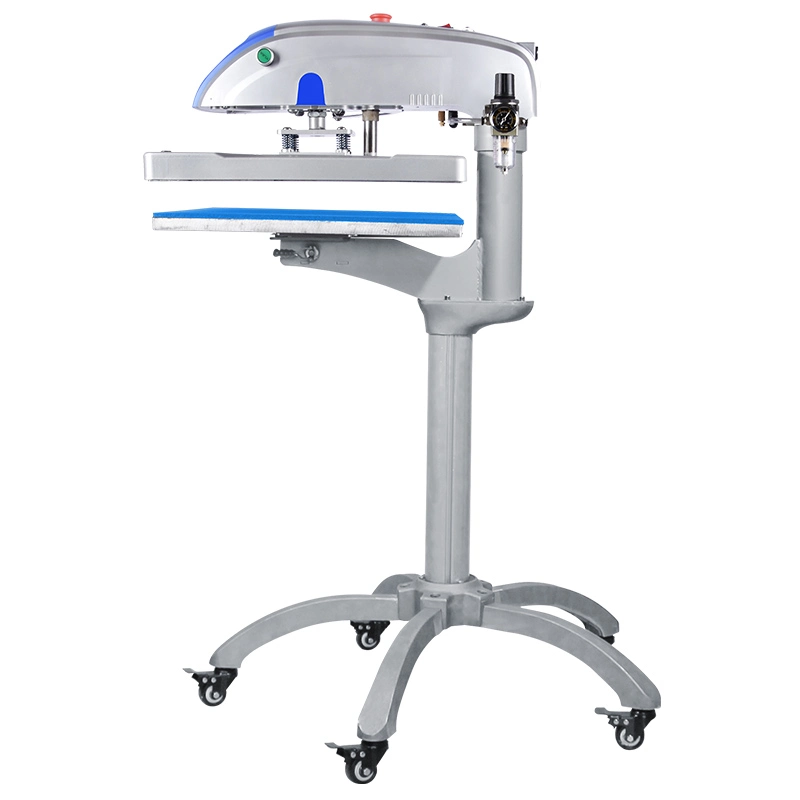

The upper platen swings aside to give the operator clear access to the loading area.

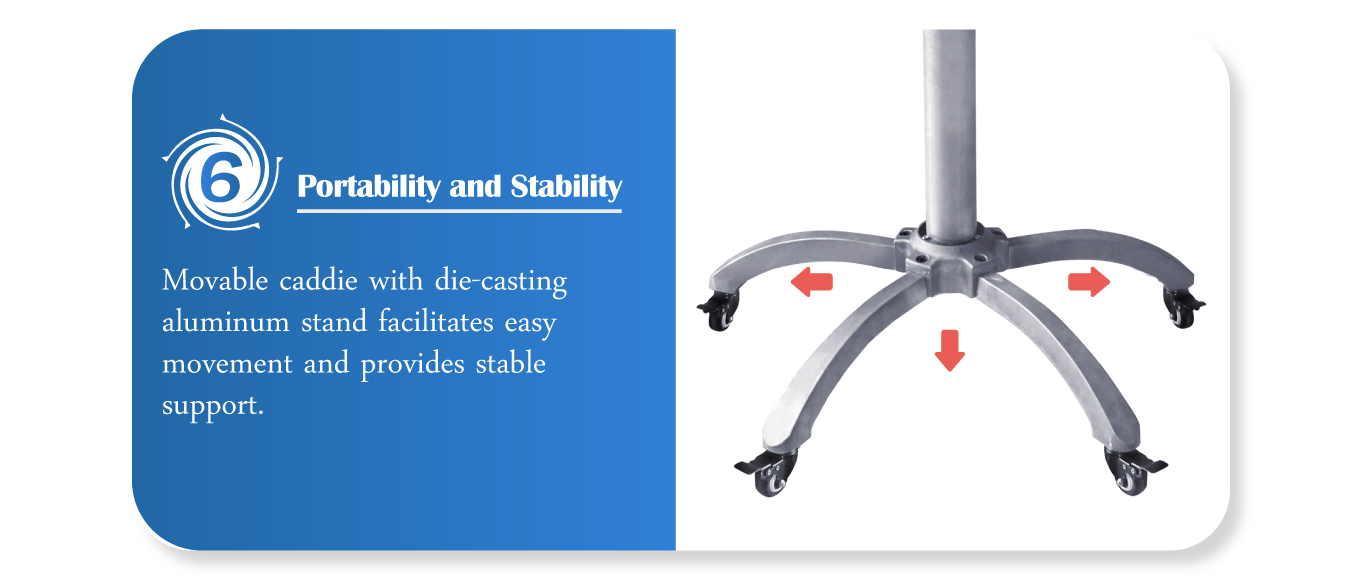

The wheeled caddie helps reposition the press and supports a more flexible workstation layout.

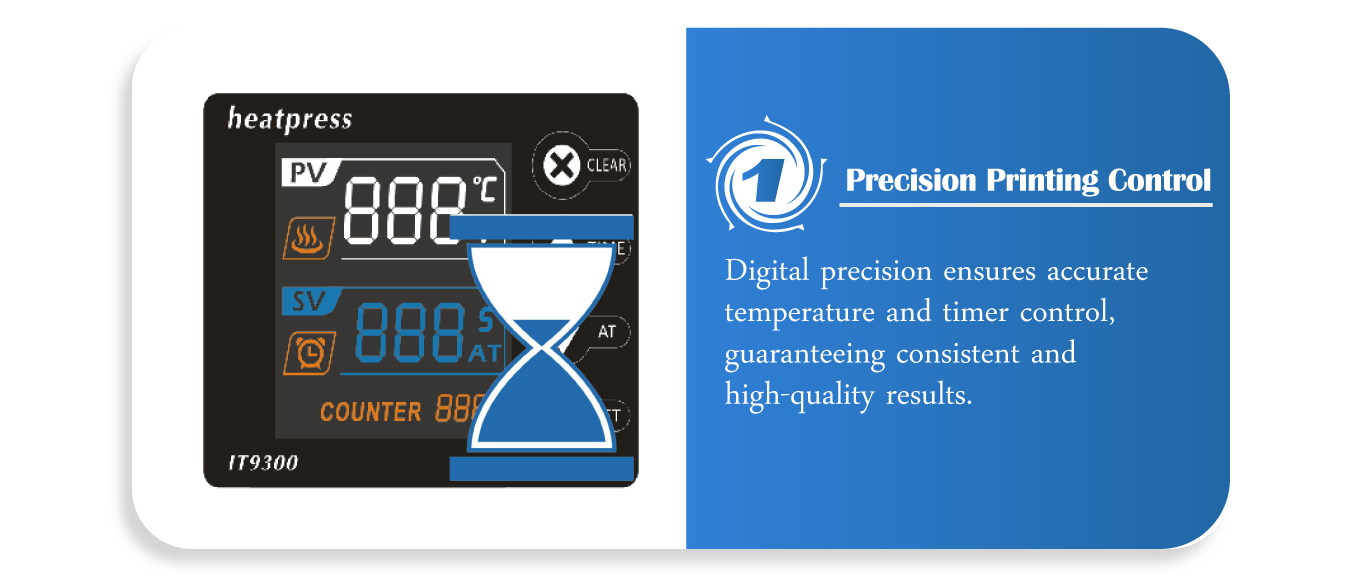

LCD Controller V2 manages temperature and timer settings for repeatable transfer parameters.
The lower platen lets users load and rotate T-shirts for printing different areas.

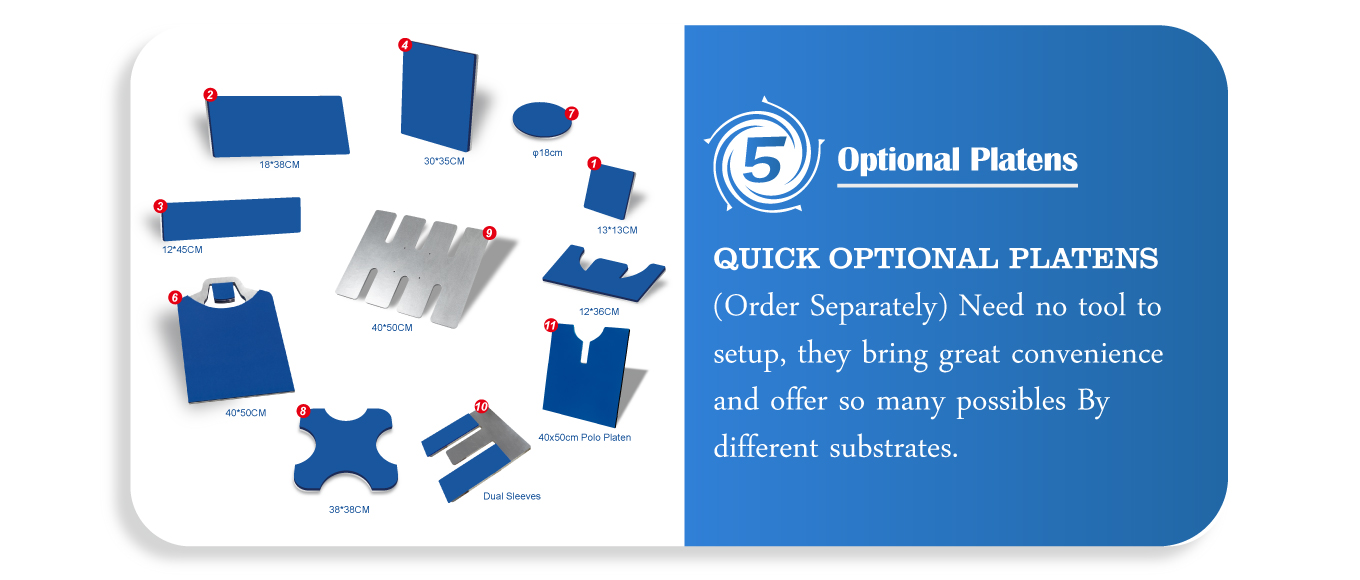

The quick-platen interface supports more than ten compatible lower-platen options for specialized applications.
| Specification | Details |
|---|---|
| Model | B1-NC PRO |
| Press Type | Pneumatic Swing-Away Heat Press |
| Platen Size | 16" × 20" (40 × 50 cm) |
| Lower Platens | Threadable quick-change lower platen; more than 10 compatible options |
| Voltage / Frequency | 110 V / 60 Hz; 220 V / 50 Hz |
| Rated Power | 1,800-2,200 W |
| Controller | LCD Controller V2 |
| Maximum Temperature | 210°C (410°F) |
| Timer Range | 0-999 Seconds |
| Auto Power-Off Timer | Up to 120 Minutes |
| Pressure Control | Air Regulator |
| Maximum Platen Pressure | 500 g/cm² |
| Maximum Material Thickness | Up to 5 cm |

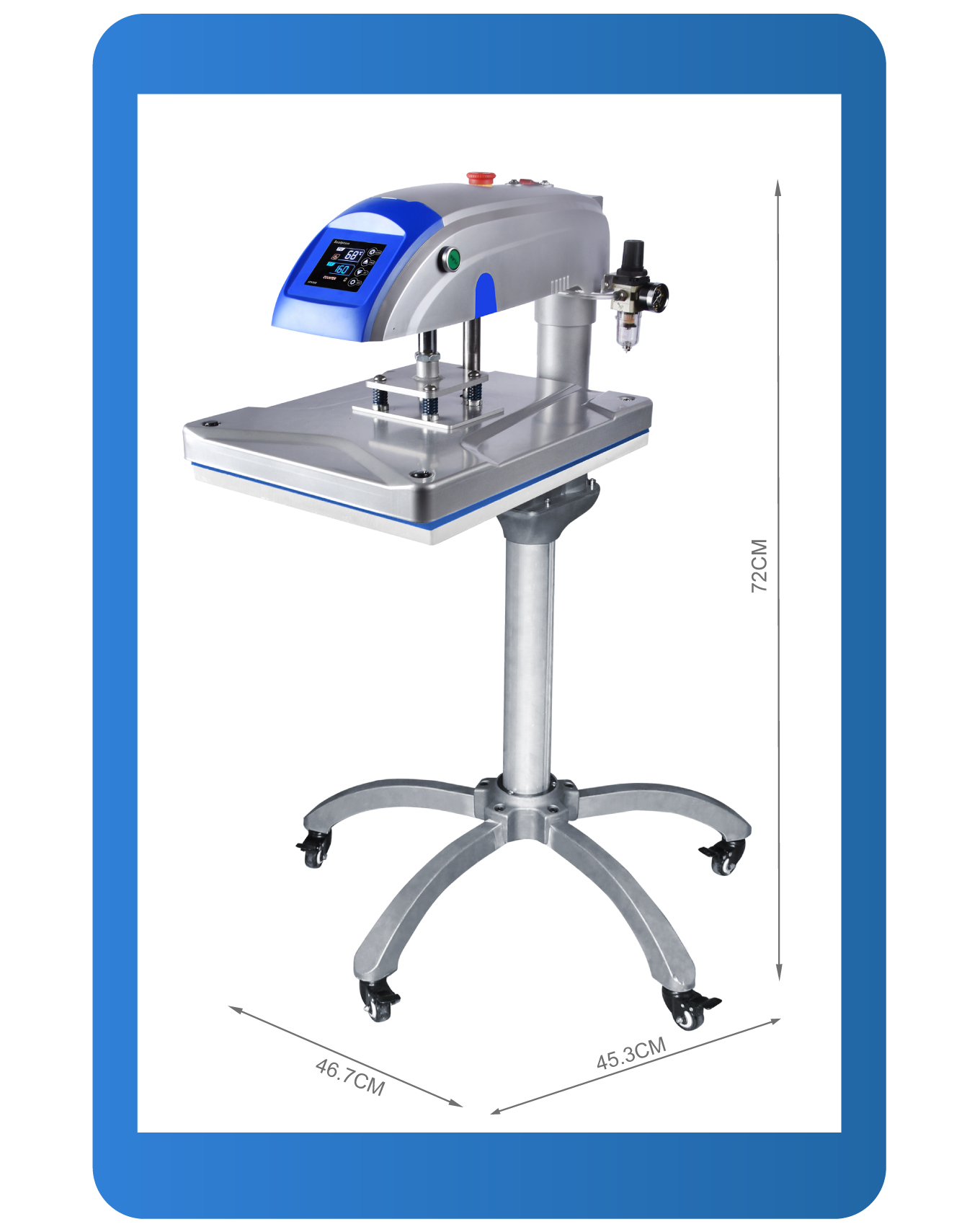

| Machine Dimensions (L × W × H) | 60 × 52 × 120 cm |
| Packing Dimensions (L × W × H) | Machine: 87 × 57 × 78 cm; Caddie: 79.5 × 65 × 14 cm |
| Net / Gross Weight | Machine Net / Gross: 40 kg / 54.5 kg; Caddie Net / Gross: 12 kg / 14 kg |
| Compliance | CE / UKCA (SGS Audited) |
