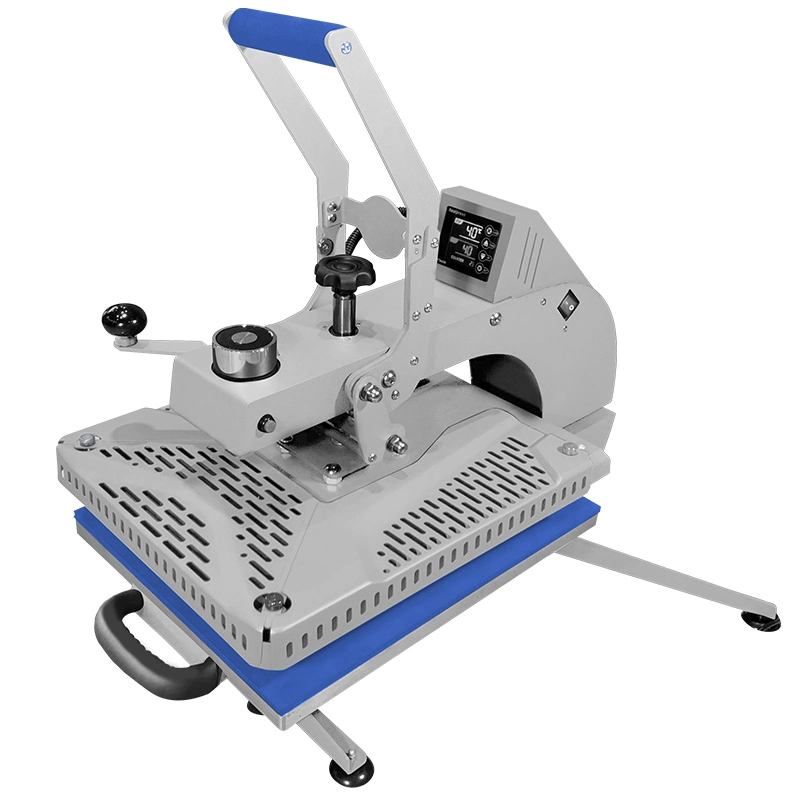

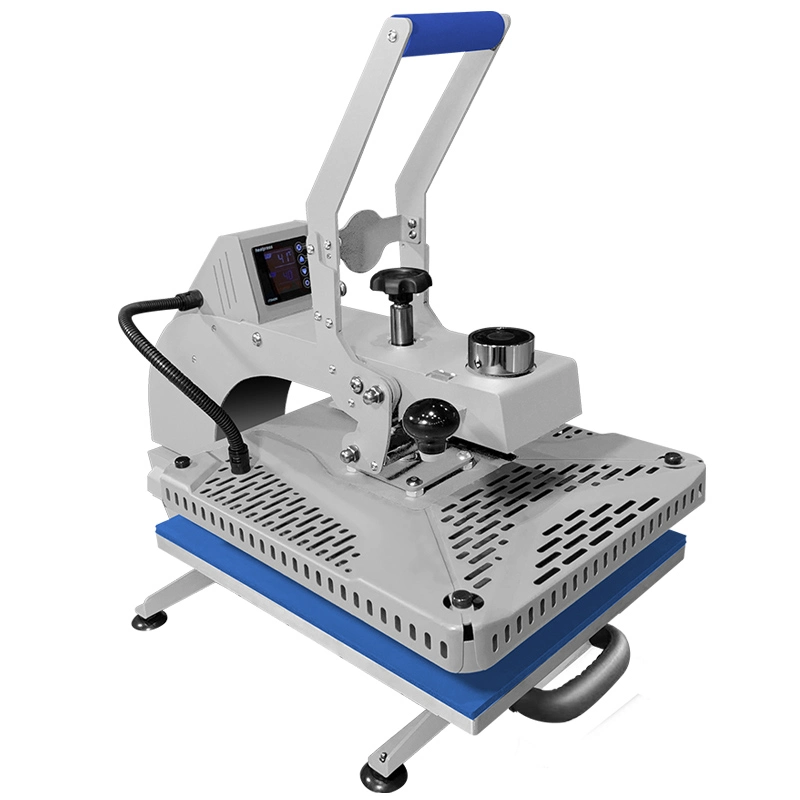

16x20 Semi-auto Swing-away TransferPresse with Slide Drawer

We’re pleased to introduce this heat press 40 x 50 to you.


  • Model: MATE450 PRO

  • Price: $398-$928(Contact us to get discount or dristributor price)

  • Time-Saving Design: Semi-auto operation speeds up the printing process.

  • Even Heat Distribution: Guarantees uniform results across the entire press area.

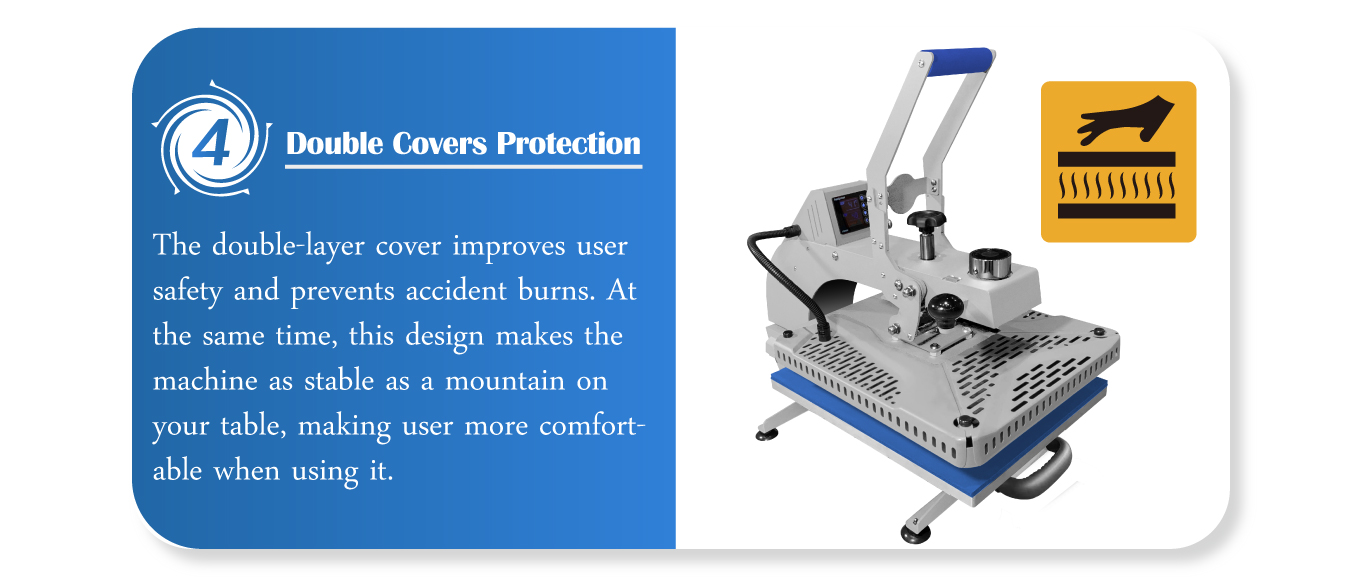

  • Safety Features: Includes mechanisms to protect users from potential accidents.

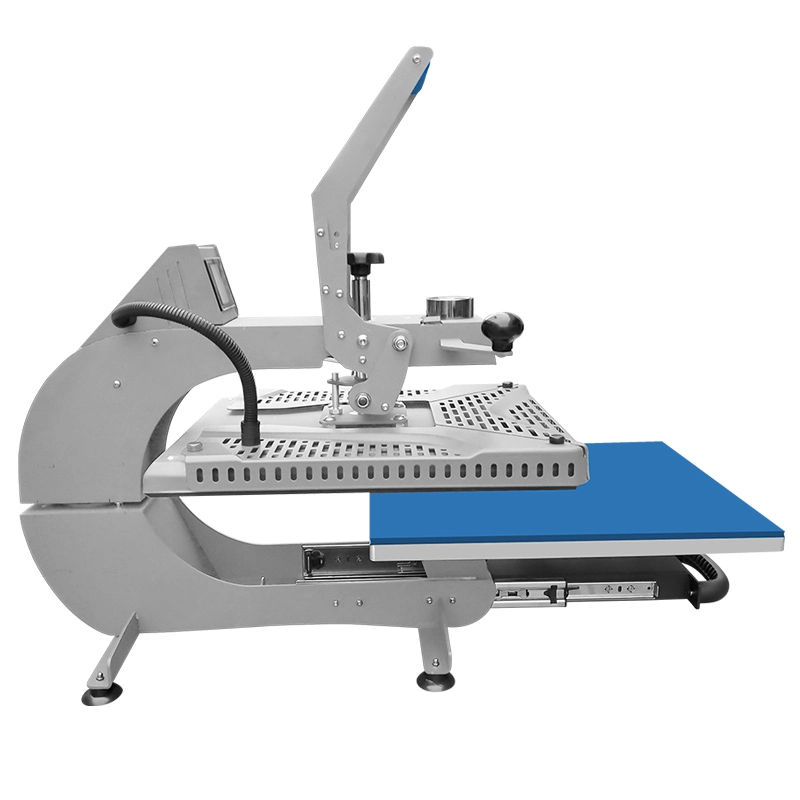

  • Slide-Out Drawer: Simplifies loading and unloading of garments, enhancing efficiency.

  • Precise Temperature Control: Ensures accurate and consistent heat for quality transfers.

  • Durability: Built with robust materials for long-term use in a busy printing environment.

  • Enhanced Workflow: Combines convenience and quality for an improved printing process.

  • Versatility: 16 x 20 Inches platen is suitable for a wide range of heat transfer applications.

  • User-Friendly Interface: Easy-to-use controls make it suitable for operators of all skill levels.

  • Thread-able Platen: Easy load and unload T-shirts onto the heat press, rotate and print any area.

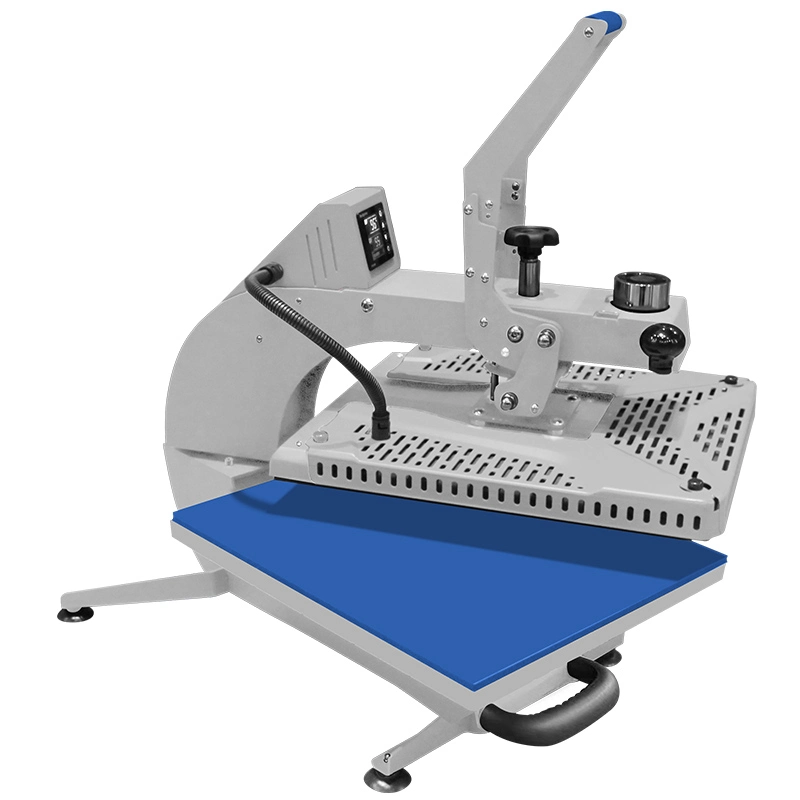

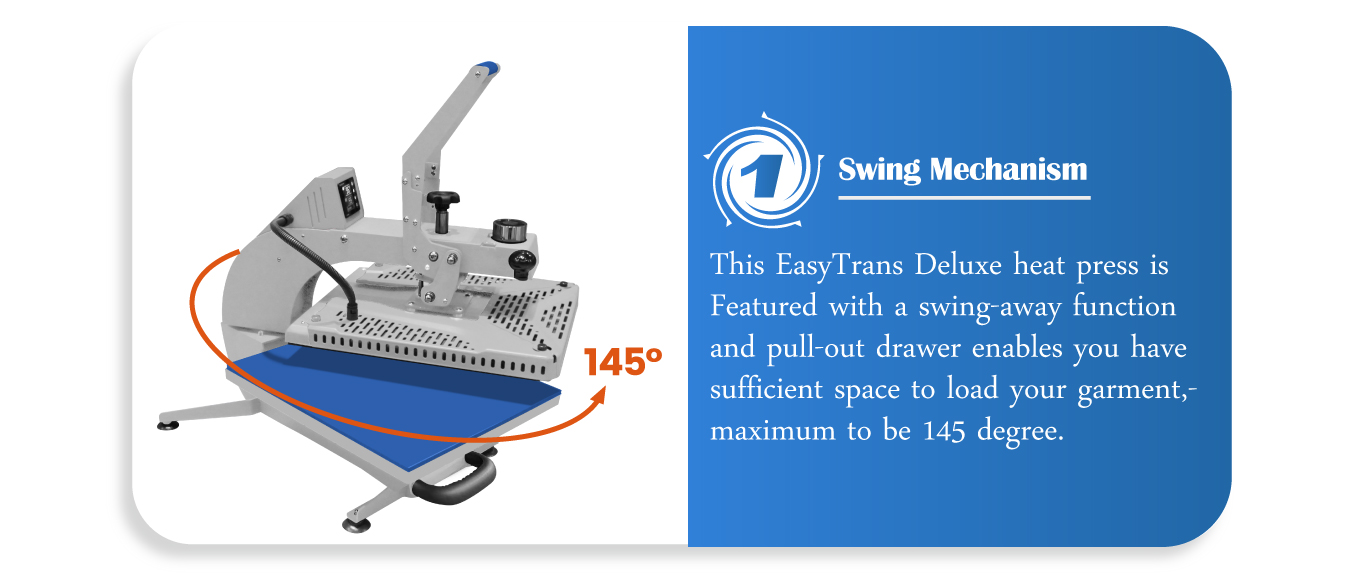

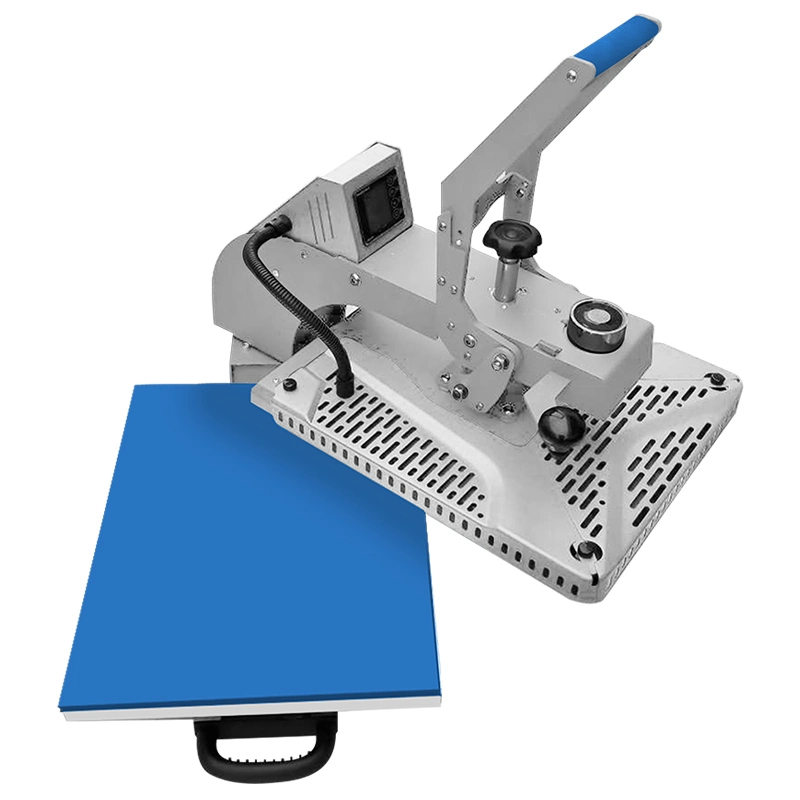

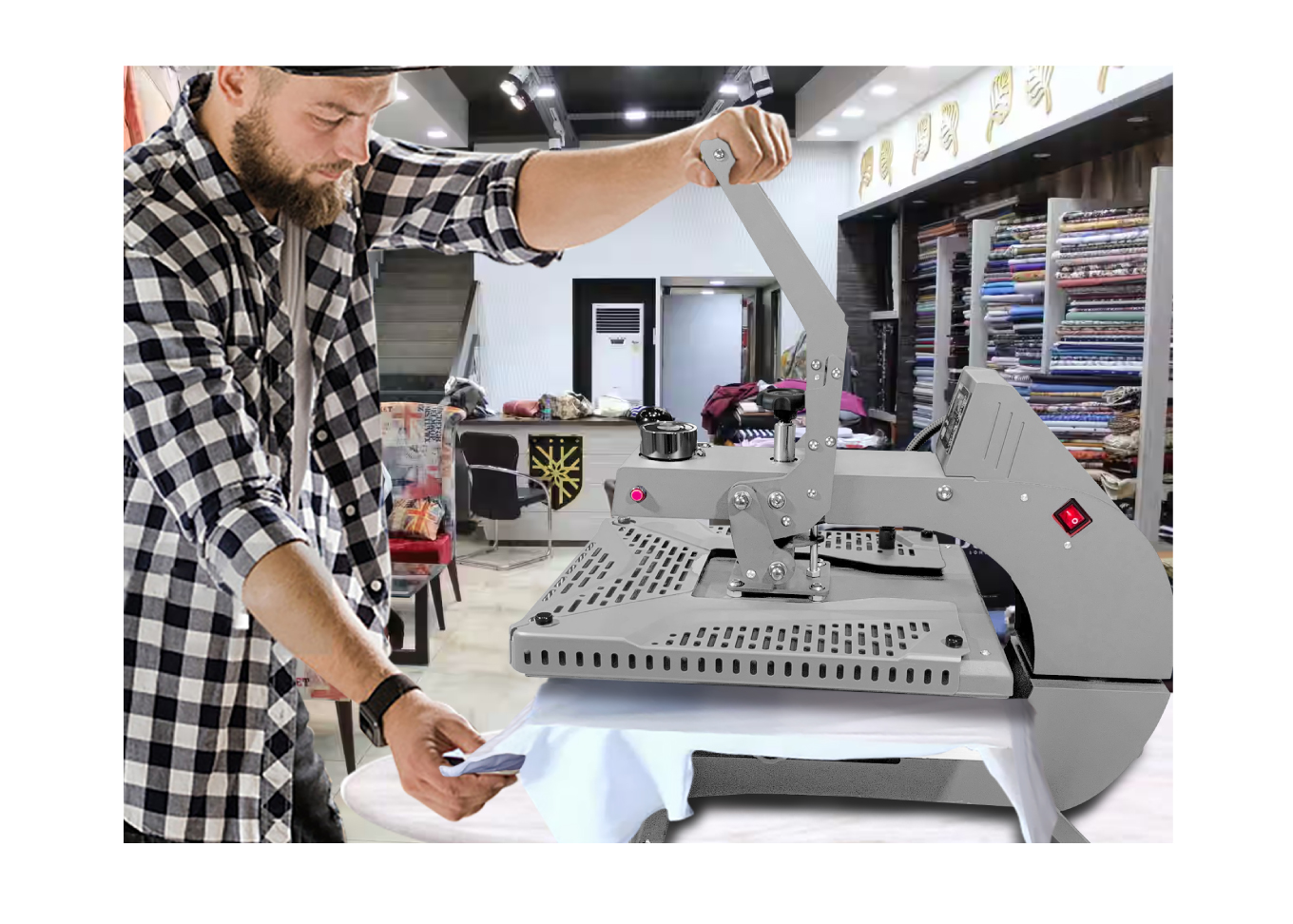

  • Swing Design: Swing-away feature provides easy access to the platen, reducing the risk of burns.

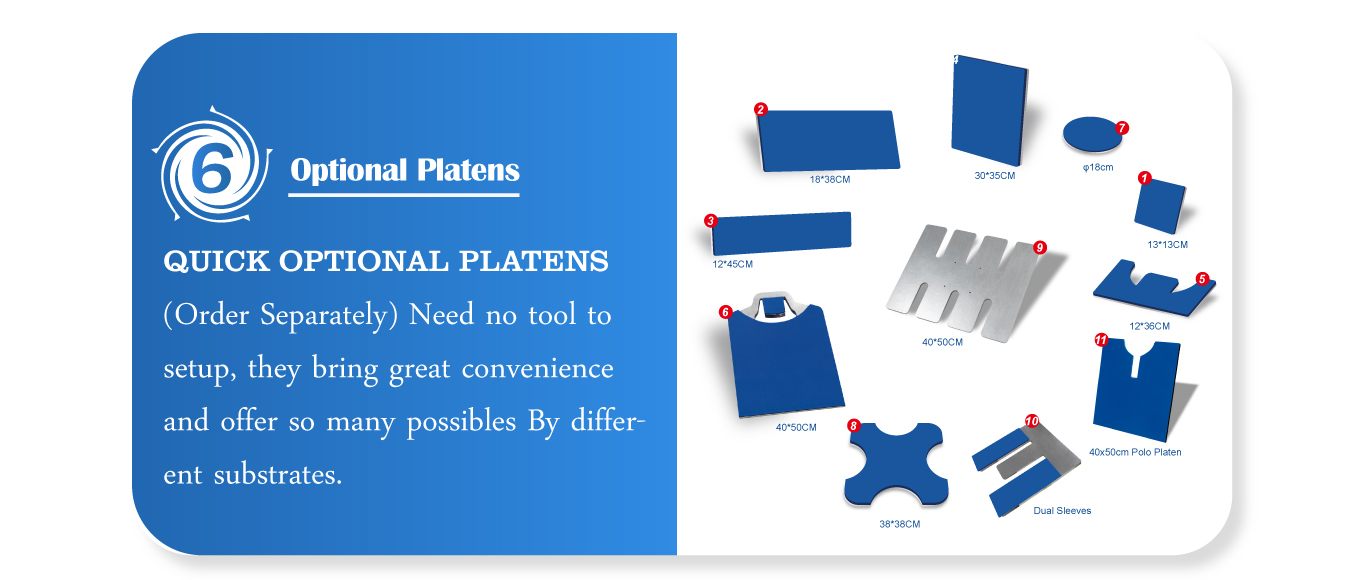

  • Quick Platens: Compatible with over 10 different kinds of lower platens to meet special printings.


As one of the leading heat press machine companies, we provide OEM/ODM services, dedicated project teams, and full after-sales support. Contact us to see how our craft heat press can boost your business.

Specification of 40x50 Semi-auto Heat Press Plus

ModelMate450 Pro
FeaturesSemi-auto | Slide Pro | Quick Platens | Curing
Voltage110V - 60Hz | 220V - 50Hz
Heat Platen16" x 20" | 40 x 50cm
Power1800W - 2200W

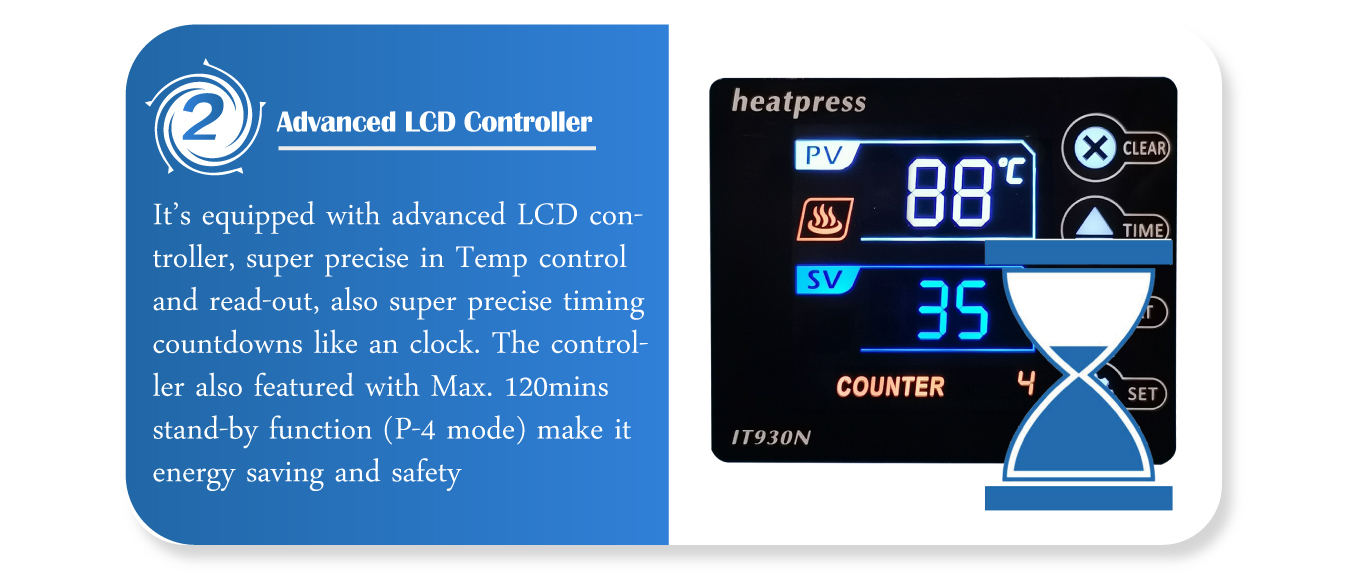

ControllerLCD Controller V2
Max. Temp.232℃/450°F
Temp. Difference±4°F/2℃
Power-off PresetMax. 120 Mins
Max Timer Preset999 sec.
Max. Downforce300 g/cm² - 40 x 50cm
Pressure SettingHand Wheel
Accept Thickness≤2cm

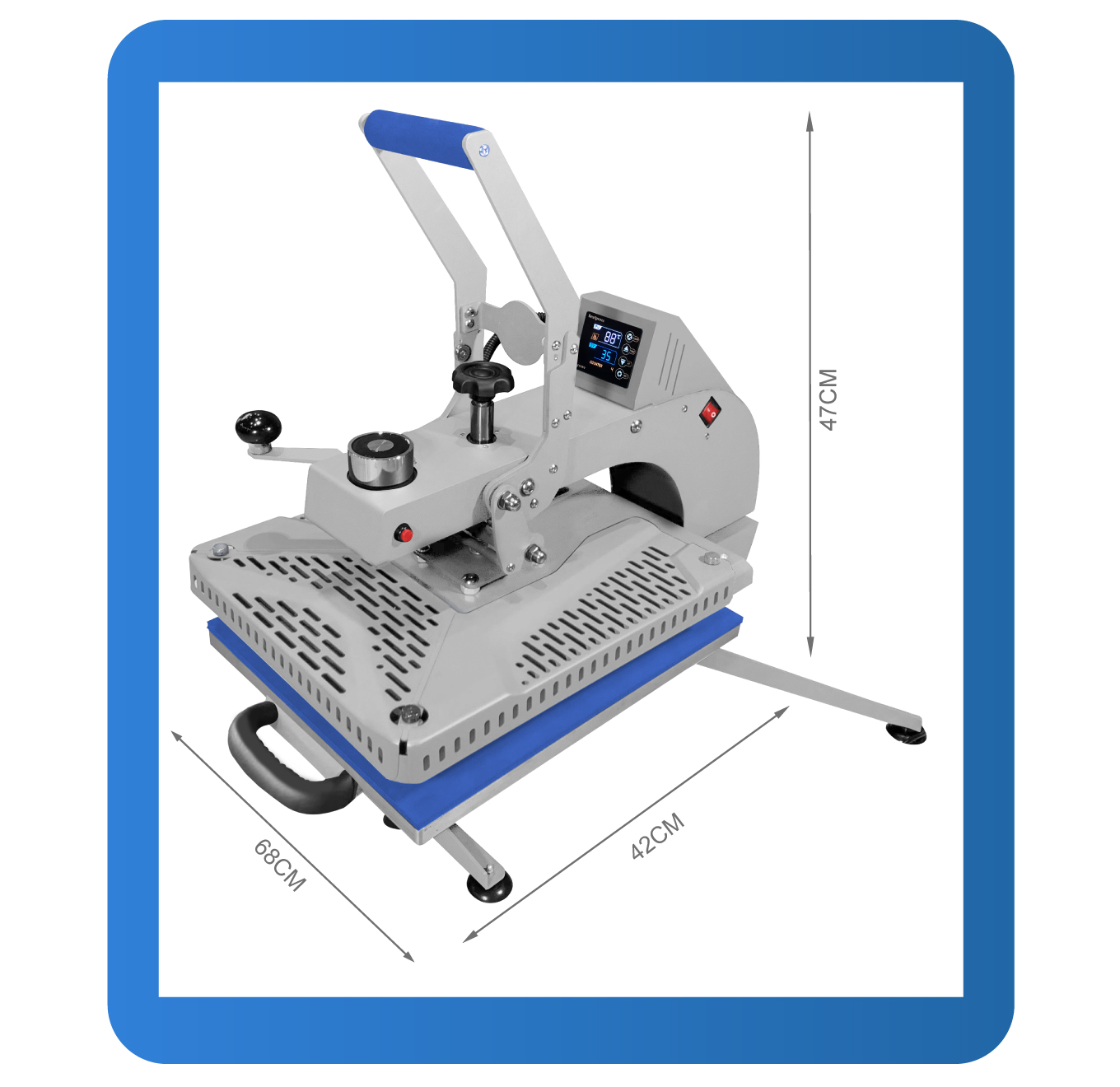

Product Size68cm x 42cm x 47cm
Package Size92 x 42 x 70cm
Product Weight62kg
Shipping Weight67kg

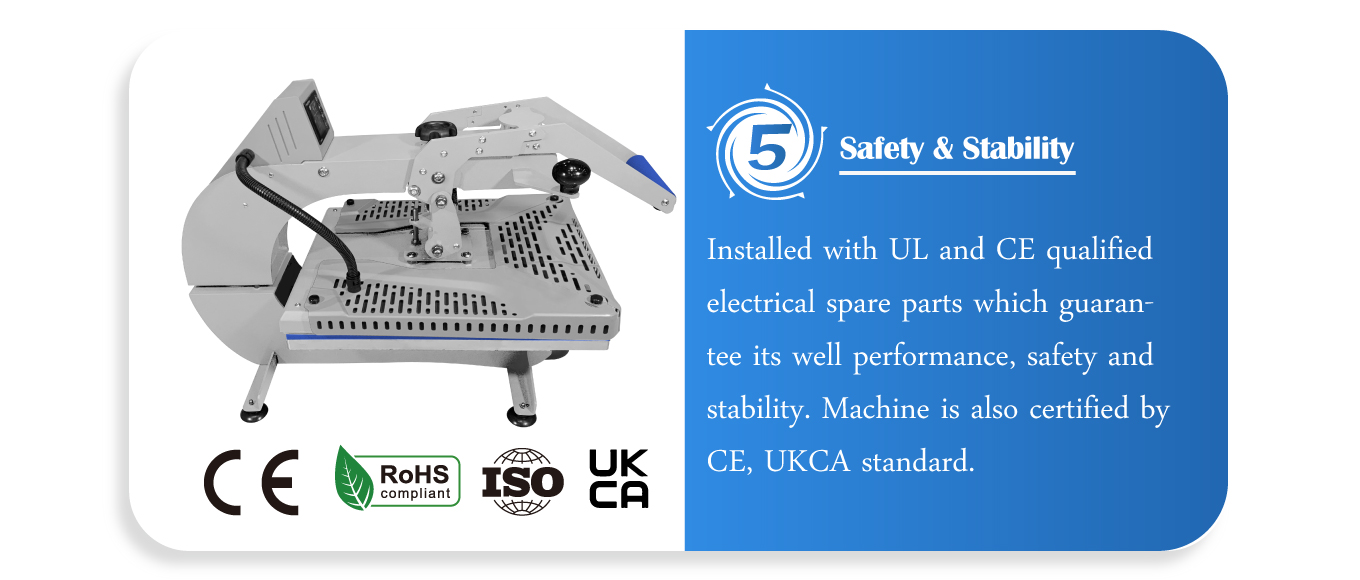

CertificateCE/UKCA (SGS Audited)


View More View Less

Feature of 40x50 Semi-auto Heat Press Plus

16x20 heat press with slide out drawer16 by 20 heat presstransferpresse

16x20 heat press with slide out drawer

16 by 20 heat press

transferpresse

16x20 heat press with slide out drawer

16 by 20 heat press

transferpresse

16x20 heat press with slide out drawer
