As the “starting point” of the printing industry, the single-station heat press has become the first choice of many personalization studios, start-ups and school workshops due to its simple operation, cost-effectiveness and wide range of adaptability.. Heat Press Leader will help you to fully grasp the purchase logic and key points of using the single-station heat press in 3 minutes, which will help you make a precise investment and an easy start.

1、Understanding the single-station heat press machine

Single station heat press is a kind of heat transfer printing equipment with only one working table and one heating plate. It is suitable for HTV heat transfer film, DTF direct printing film, sublimation paper and other processes to transfer the pattern to T-shirt, canvas bag, towel, floor mat and other flat fabrics through high temperature and pressure.

Common structure types are:

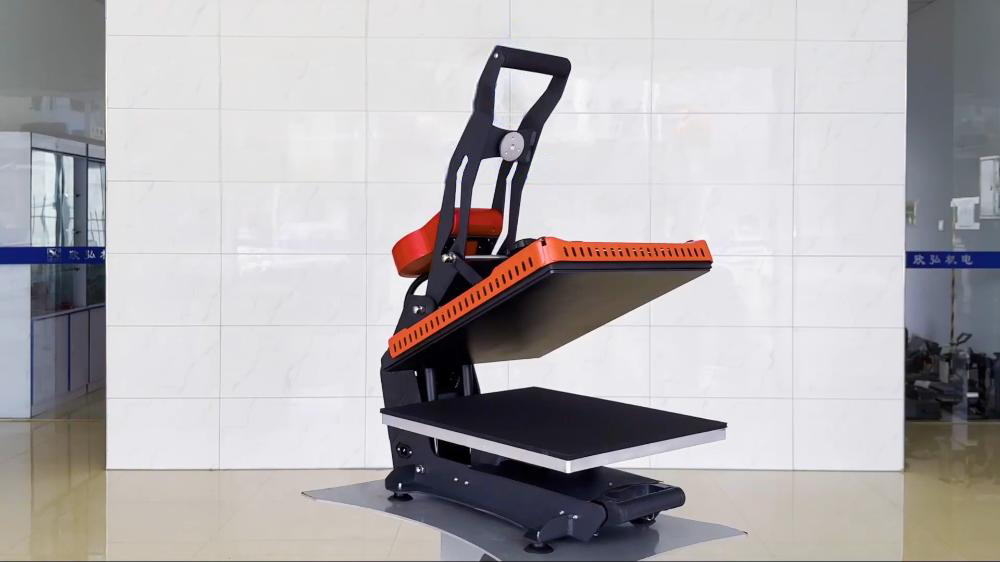

Clamshell: the upper plate is lifted from upper platen, compact structure, suitable for small space operation;

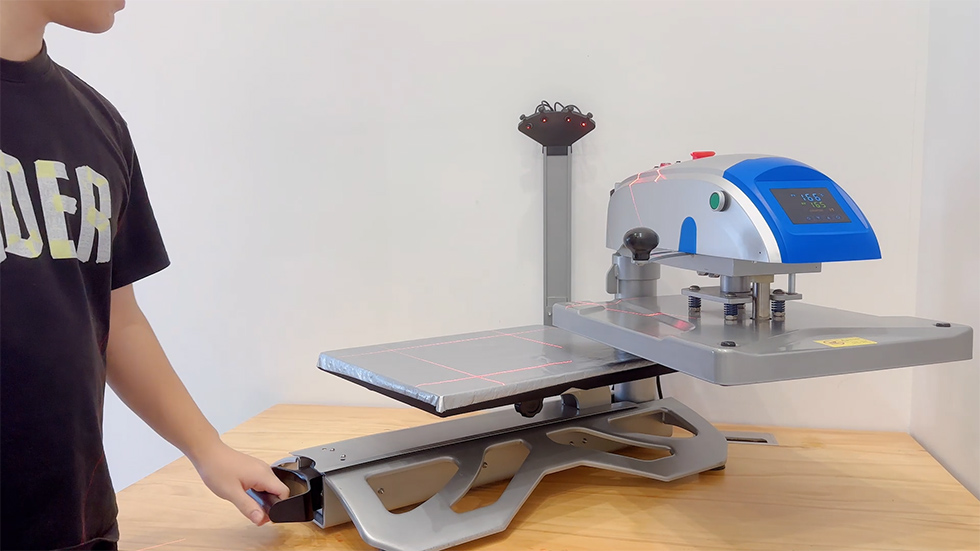

Swing-away: the heating plate can be rotated horizontally, convenient for picking up and placing the material, more suitable for large-size patterns or thick material transfer.

2、A quick look at the main points of purchase (core 5 questions)

2.1、Machine size: What size do I need?

The general recommended sizes are as follows:

It is recommended that you choose a heating plate that is 3-5cm larger than the pattern to ensure that the heat and pressure are adequately covered.

2.2、Temperature/time /pressure: can it be controlled individually?

Prefer models with digital temperature control + timer + pressure knob adjustment, easy to adapt to the heat pressing needs of different materials.

2.3、Heating uniformity and material: is cast aluminum or alloy plate used?

High-end models use cast aluminum one-piece heating plate, fast warming and even heat distribution, not easy to appear local overheating or bias pressure.

2.4、Structural stability and opening and closing: is it easy to operate?

Clamshell type is suitable for desktop placement, simple structure, but the operating angle is limited;

Rocker type is more flexible, the platen is far away from the body, suitable for high-frequency use with high thermal safety needs.

2.5、Brand and after-sales: Is there any after-sales service or online support?

Our machines come with a one-year warranty and accessory repair. When you find something wrong in the future, we need your help to provide the pictures and video for our technical team to analyze the problem, then we will provide the spare parts and change instructions video for you.

3、Guide to avoiding pitfalls and misunderstandings

3.1、“The bigger the size, the better”?

Misconception: Newcomers are often attracted by the “large size”, the result is too large an area, heating power consumption, efficiency is reduced.

Suggestion: Match according to the need, standard T-shirt recommended 16 × 20 inches can be.

3.2、“Just use a household outlet”?

Misconception: Ignore power and current carrying, resulting in tripping or even circuit burning.

Suggestion: Confirm the power of the equipment (1800W-2200W) with the seller and use a standardized three-hole grounded socket.

3.3、“Cheaper to buy used is better”?

Misconception: Used equipment often has hidden problems such as temperature control drift and pressure mechanism wear.

Suggestion: New machines are more secure to start with, especially those with warranties and branded after-sales service.

4、Suggestions for use (Getting Started is Steady)

Before first use: Warm up for 10 minutes and start the pressure test after the temperature has stabilized;

Always perform the “paper test”: place a printout on the paper to test for even pressure;

Calibrate the temperature regularly: use an external thermometer to check that the displayed temperature agrees with the actual temperature;

Use a non-stick cloth or parchment paper to avoid contaminating the heating plate with adhesive residue.

5、Maintenance and care

Daily maintenance: Wipe the surface of the heating plate for dust and fiber residue;

Weekly maintenance: check for loose pressure knobs; lubricate hinge and slide positions;

Check quarterly:

Temperature control system errors;

Heating plates for oxidation or delamination;

When out of service for a long period of time: unplug the power supply and cover the unit with a dust cover.

6、Frequently Asked Questions

Q1：The temperature reaches the set value but the transfer is not firm?

A1：May be due to insufficient pressure or insufficient time setting, we suggest checking the platen fit status and increasing the heat press time by 2-3 seconds.

Q2: What should I do if the edge of the pattern warps?

A2: Check if the preheating is sufficient and make sure the membrane is compacted. Try replacing the membrane or increasing the heat pressing pressure.

Q3：What should I do if there is an indentation on the clothes after transferring?

A3：It is normal to have indentation, you can lightly spray water mist and then use iron or hot air blower to eliminate it.

Q4: I only have 220V power supply, is it applicable?

A4: Most professional grade equipment supports 110V/220V voltage, it is recommended to confirm the plug type with the seller and use a voltage regulator.

Conclusion

As the core equipment in the starting stage of the studio, the purchase and use of single-station heat press is directly related to the production efficiency and product quality. By mastering the four core points of size matching, precise temperature control, pressure adjustment and brand selection, and avoiding typical misunderstandings, you will be able to skillfully use this equipment in a short time to create a stable, high-quality printing product line.

Want to further improve efficiency? Welcome to learn about the dual station and fully automatic heat press machine, and start the road to high productivity!
